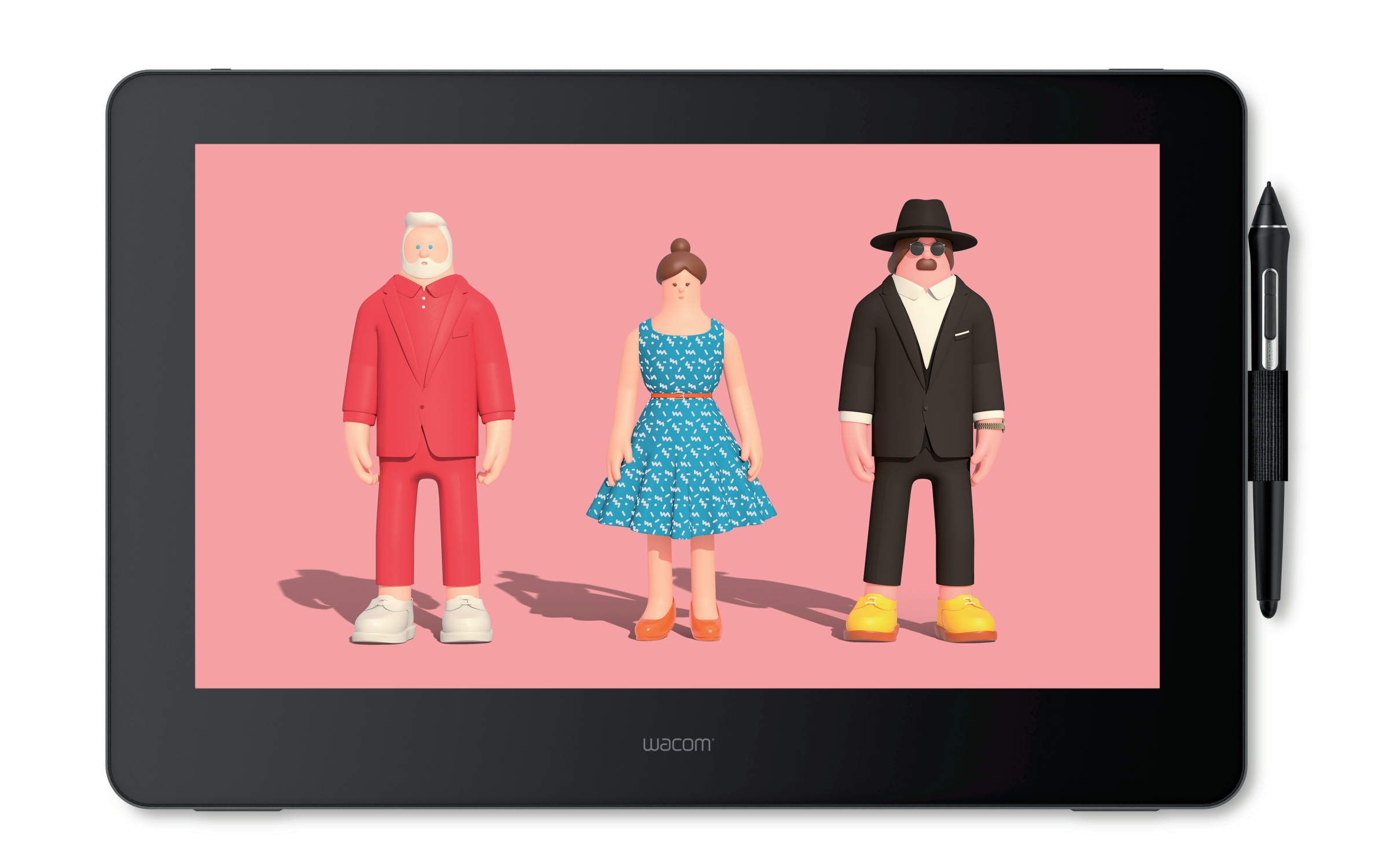

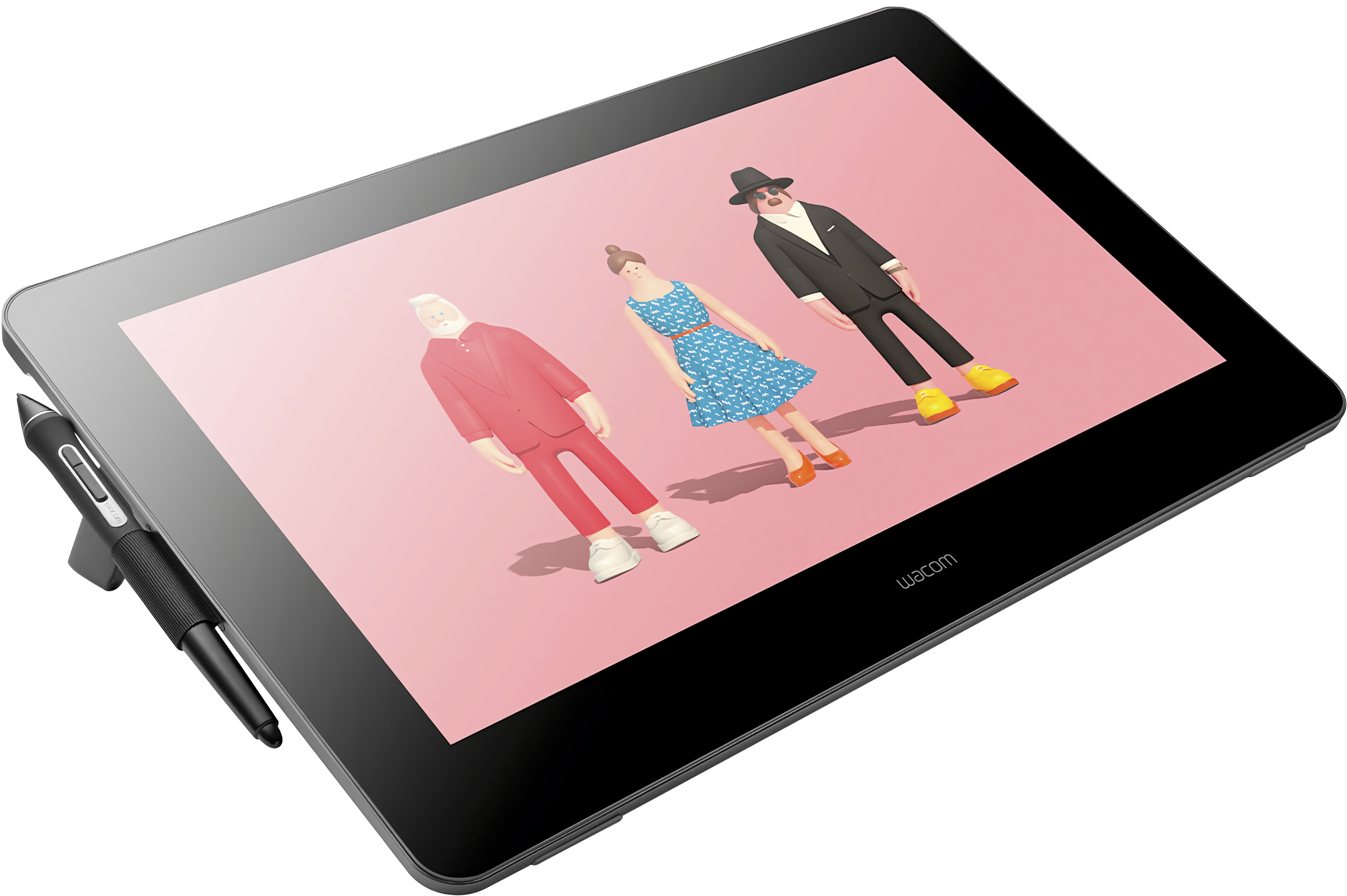

Cintiq Pro 16 (2021)
• Product Type : Creative Pen Display
• Model : DTH-1670/K
• Product Weight : 1.9 kg (4.2 Ibs)
• Product Dimensions : 410 x 266 x 22 mm (16.1 x 10.5 x 0.9 inch)
•Pen & Touch Display Technology
Screen Size (measured diagonally) : 15.6 in (39.6 cm)
•Active Area : 344 x 194 mm (13.6 x 7.6 in)
• Display Technology : IPS
• Touch Technology : Projected capacitive
• Multi-touch : Yes -10 fingers
• Display Resolution : 3840 x 2160 pixels
• Supported Resolution
800x600@60Hz (SVGA)
1024x768@60Hz (XGA)
1280x720@60Hz (HD)
1280x1024@60Hz (SXGA)
1600x1200@60Hz (UXGA)
1920x1080@60Hz (FHD)
2560x1440@60Hz (QHD)
3840x2160@60Hz (4K UHD)
Uniformity compensation function
Yes
• Pixel Pitch : 0.08964 (H) x 0.08964 (V) mm
• Surface : AG glass
• Brightness : 300 cd/m2 (typ)
•Displayable Colors (maximum) : 16.7 million colors (8bit colors)
• Color Gamut Coverage Ratio : 98% Adobe RGB (CIE 1931) (typ)
• Aspect Ratio : 16:9
• Viewing Angle : 178° (89°/89°) H, (89°/89°) V (typ)
• Contrast Ratio : 1000:1 (typ)
• Response Time : 30 ms (typ)
• Product Color : Black
• Pen : Wacom Pro Pen 2
• Pen Technology : Electromagnetic resonance technology
• Pen Pressure levels : 8192 levels (pen and eraser)
• Supported Pen Tilt Angle : 60 degrees
• Pen Resolution : 5080 lpi
• Pen Type : Pressure-sensitive, cordless, battery-free
• Switches : 2 side switches
• Replacement Nibs : 13 nibs

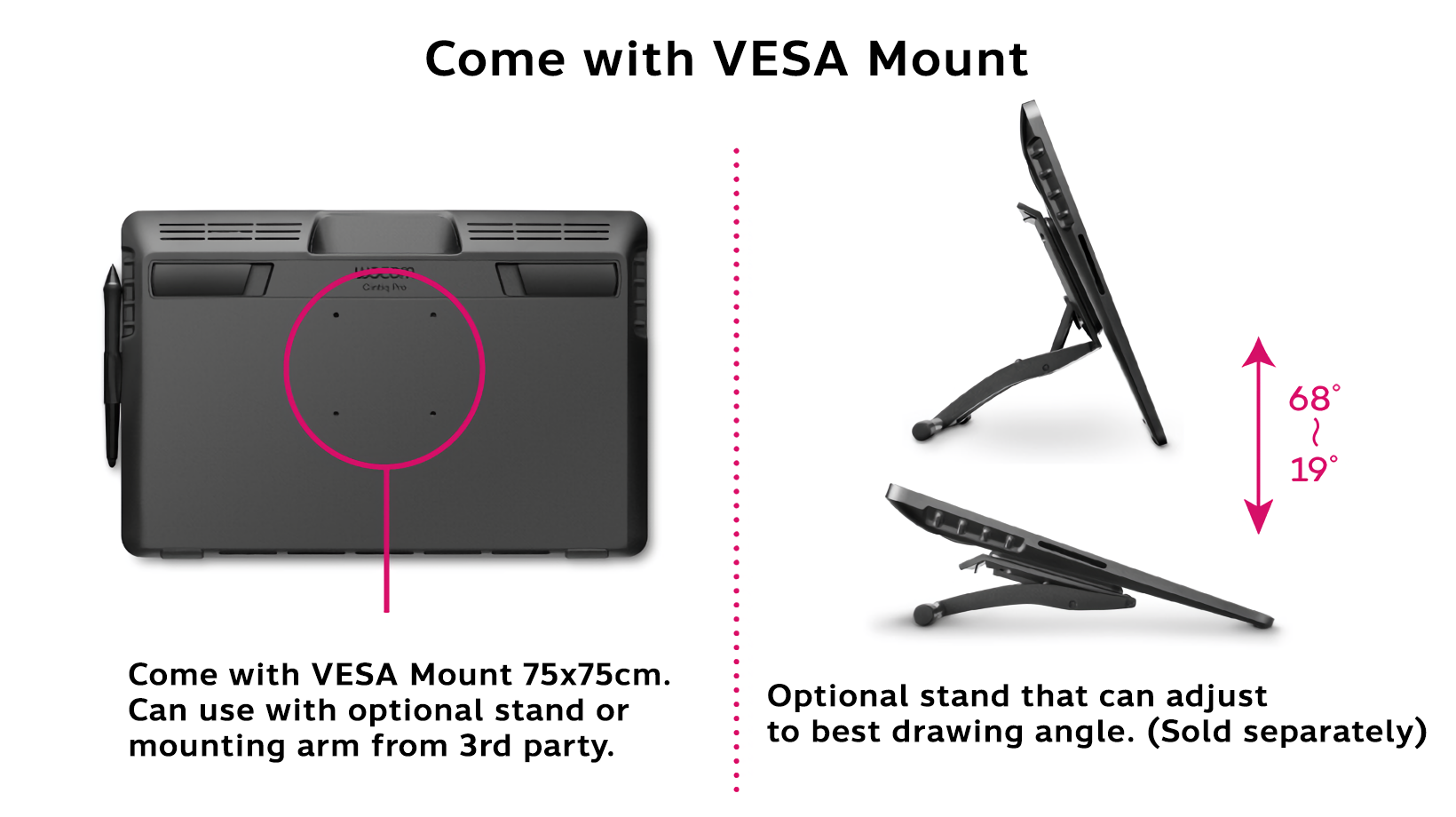

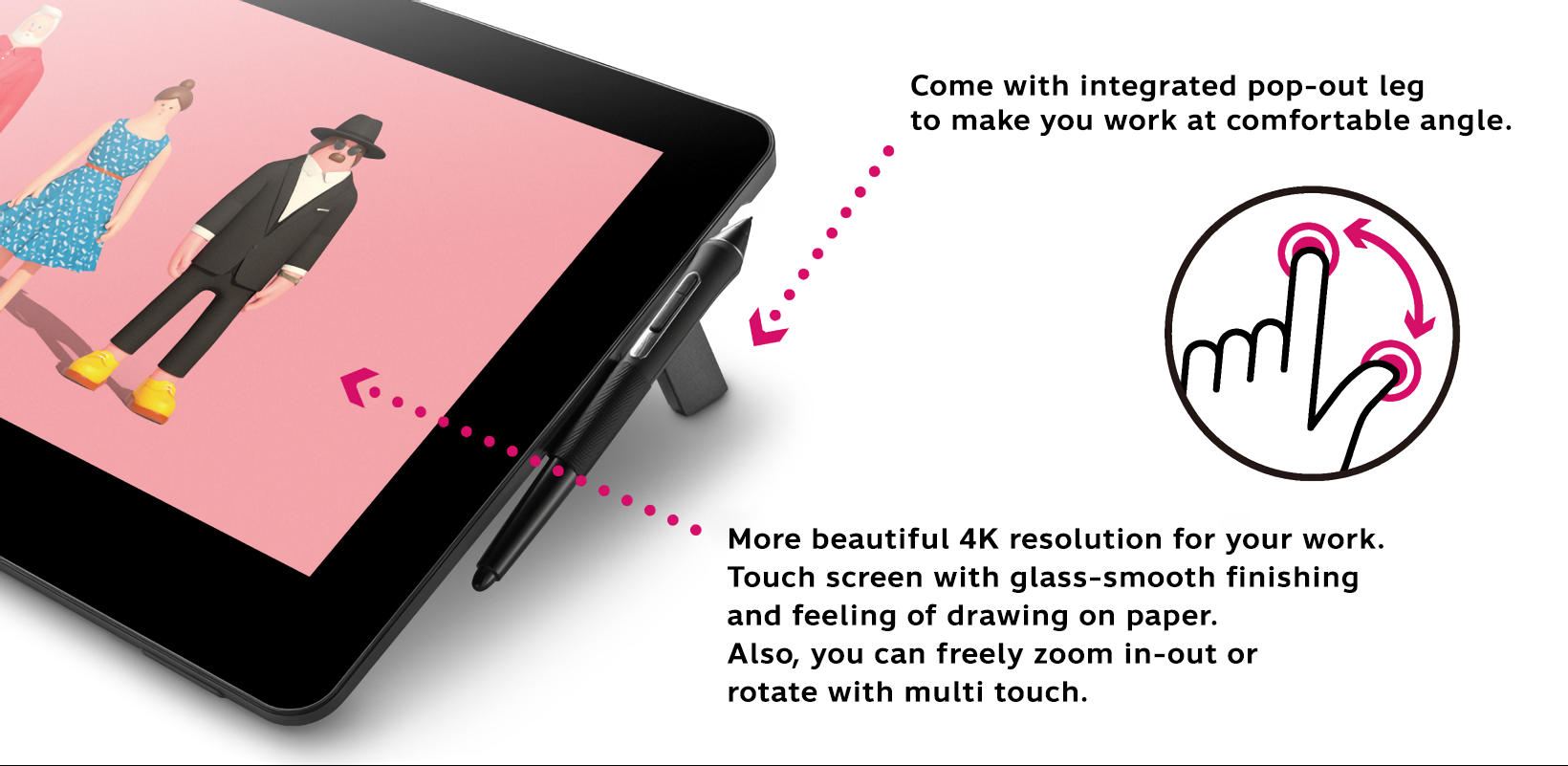

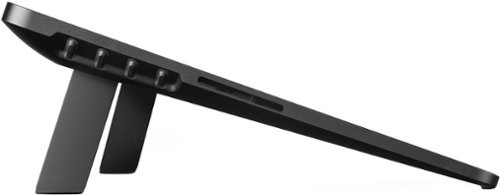

• Stand Adjustability : Integrated fold-out legs for 20°
• Productivity Boosters

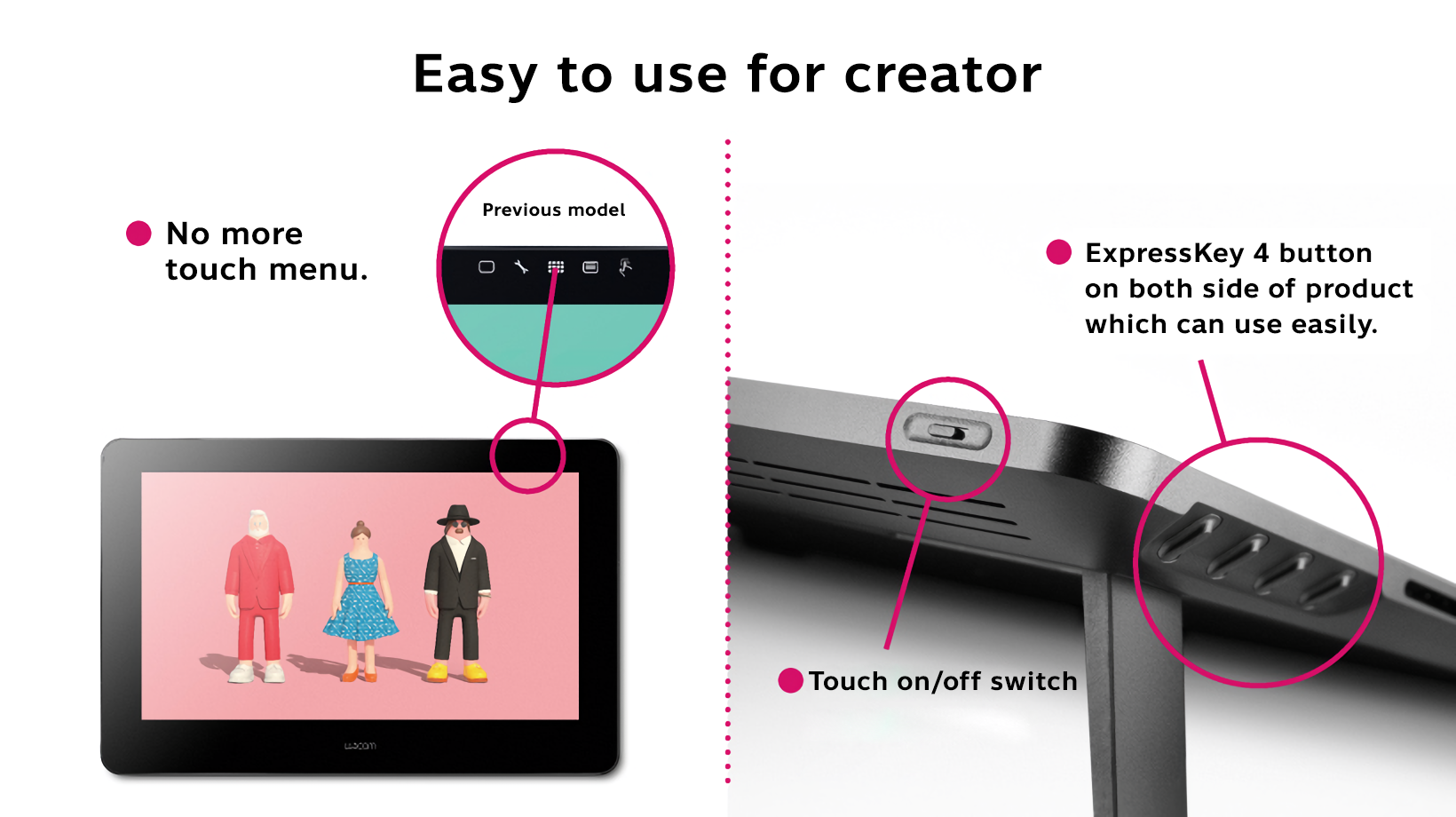

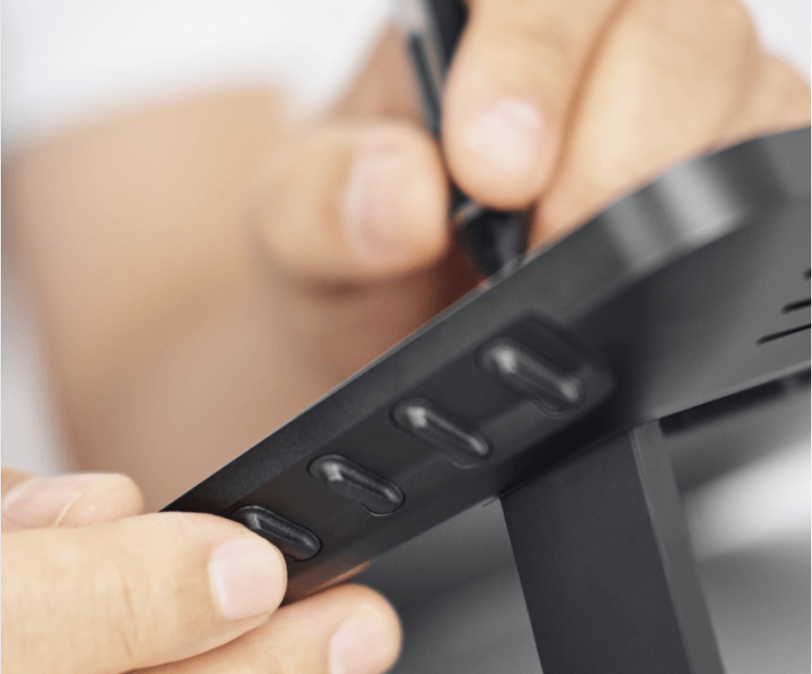

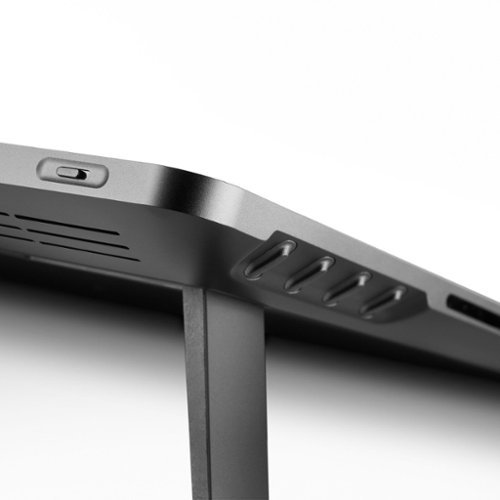

- ExpressKeys™ - Yes (total 8 keys)
- Dedicated pan, scroll, zoom, brush size

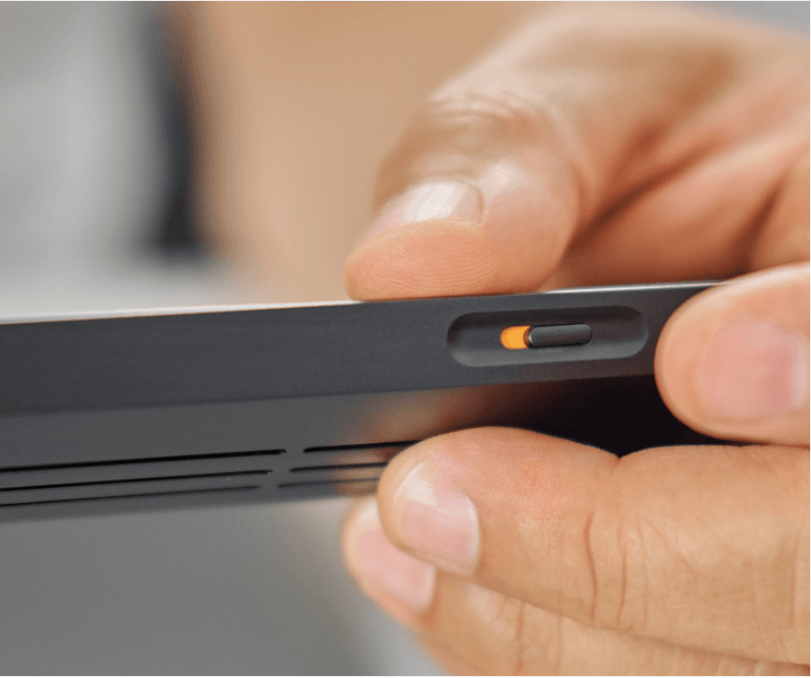

- Touch on/off switch
- Precision Mode
- Radial Menu
- Display Toggle
- On-screen controls
• Power Input Voltage : 100 to 240 VAC, 50/60Hz
•Power Output Voltage : 12V/5A
• Storage Temperature and Humidity :
- Temperature: -10 to 60 degree C
- Humidity: 30% to 90% RH (non-condensing)
- Maximum storage humidity is 90% at a temperature of 40 degree C, and maximum storage temperature is 60 degree C at a humidity of 30%.
• Operating Temperature and Humidity
- Temperature: 5 to 40 degree C
- Humidity: 30% to 80% RH (non-condensing)
• Security : Kensington® MicroSaver 2.0
• Operating system requirements :
- PC: Windows® 7 or later (Latest service pack/ build)
- Mac: macOS 10.14 or later (Latest update)

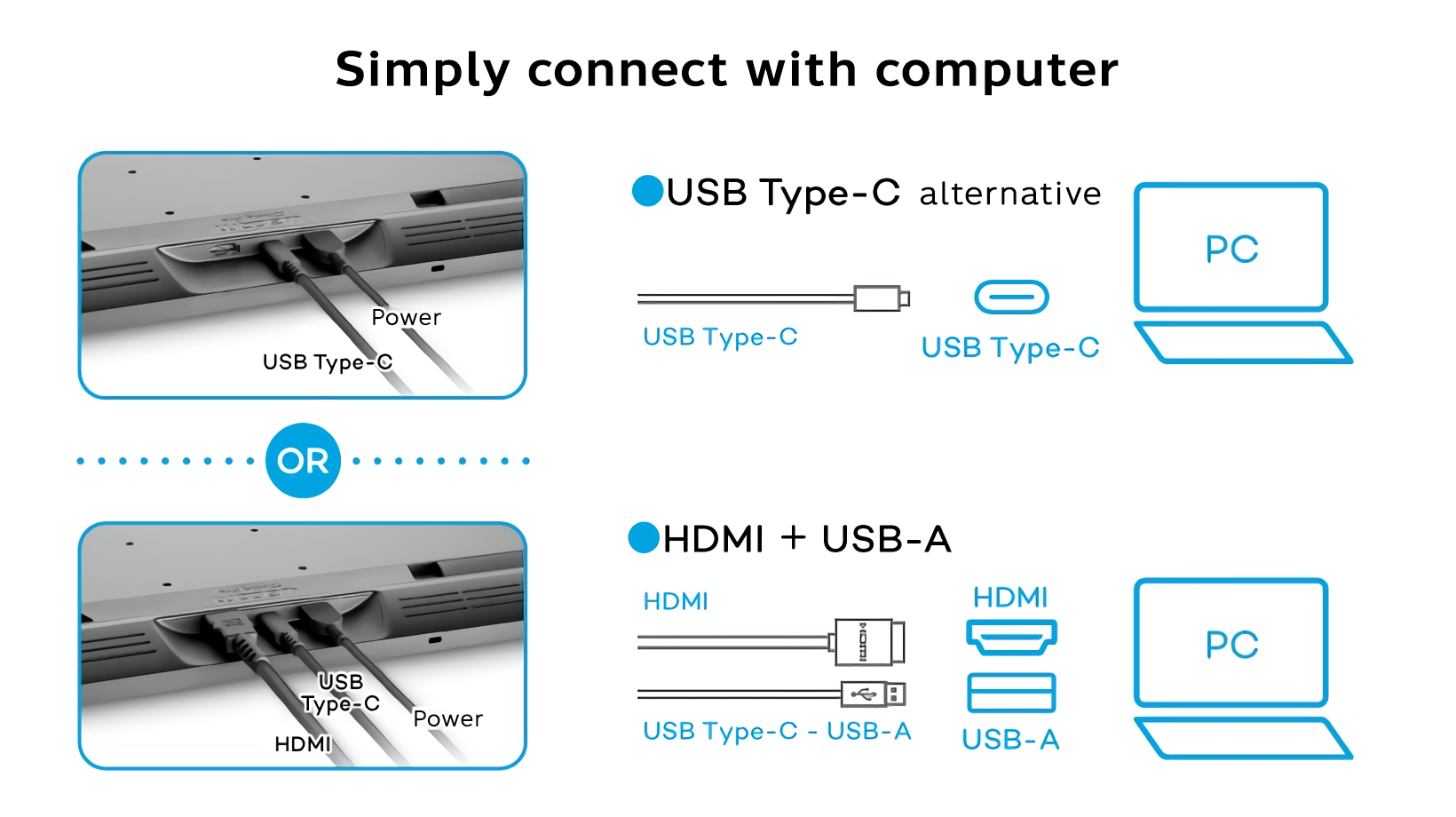

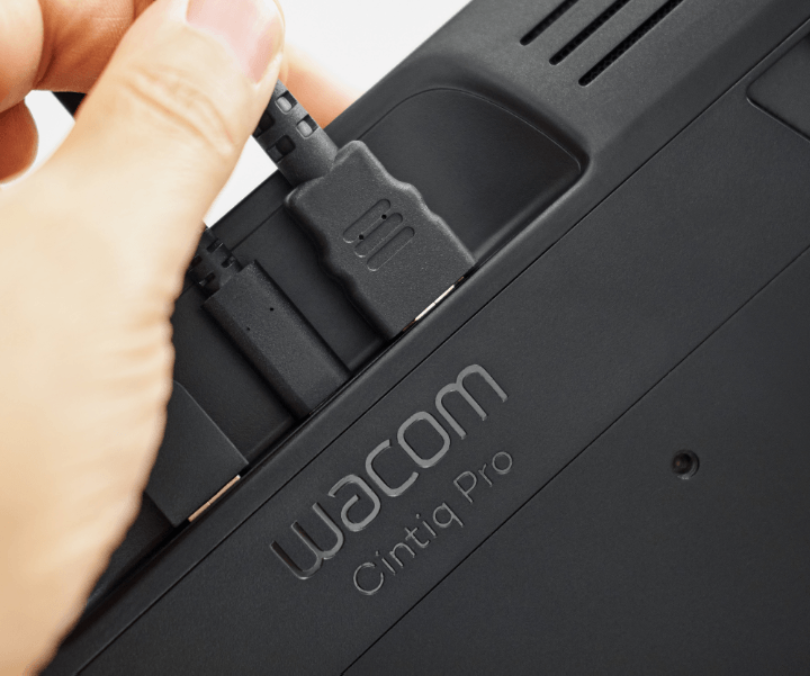

• Hardware Requirements : USB-C port with DisplayPort Alternate Mode* or HDMI* port and USB-A port
Internet access for driver download
*Ports on host PC 3840 x 2160@60Hz to show maximum resolution on Wacom Cintiq Pro 16

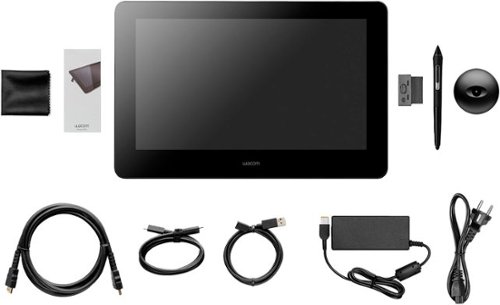

• What's Included
Wacom Cintiq Pro 16
Wacom Pro Pen 2
Pen stand with 10 replacement nibs(6 standard, 4 felt) and nib removal tool
Pen holder with 3 replacement nibs (3 standard)
13 Replacement nibs in Pen stand and Pen holder
USB-C to USB-C cable (1.0m, PVC-free)
USB-C to USB-A cable (1.8m, PVC-free)
Premium HDMI cable (1.8m, PVC-free)
Power cord (1.0m)
Quick Start Guide
Regulation sheet
AC adaptor(1.2m, PVT-free)
Cleaning cloth
• Warranty : 1 years
การรับประกัน : รับประกัน 1 ปี
