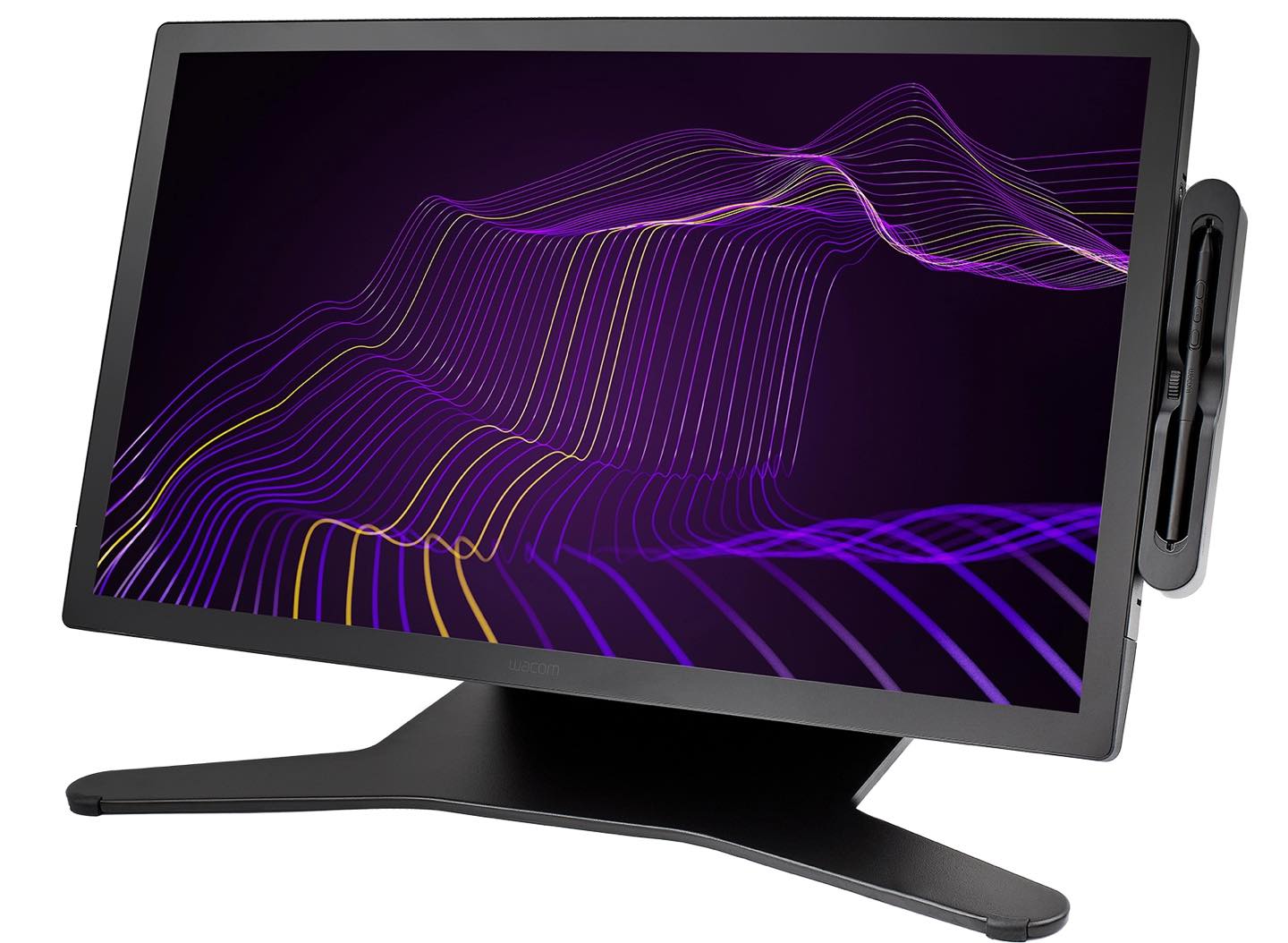

Cintiq Pro 27
Product Information
• Product Type : Creative Pen Display
• Model Code : DTH-2710/K
• Product Weight : 7.2 kg (15.9 Ibs)
• Product Dimensions : 379 x 638 x 31 mm (14.9 x 25.1 x 1.2 in)
• Product Color : Black
• Pen & Touch Display Technology
• Screen Size (measured diagonally) : 26.9 in (68.3 cm)
• Active Area : 596 x 335 mm (23.5 x 13.2 in)
• Display Technology : IPS
• Touch Technology : Projected capacitive
• Multi-touch : Yes - 10 fingers
• Display Resolution : 3840 x 2160 pixels
• Supported Resolution
640x480@59.94Hz/60Hz (CTA)
640x480@60Hz (VGA)
720x400@70Hz (VGA)
720x480@59.94Hz/60Hz (CTA)
720x576@50Hz (CTA)
800x600@60Hz (DMT)
1024x768@60Hz (DMT)
1280x720@60Hz (DMT)
1280x720@59.94Hz/60Hz (CTA)
1280x720@50Hz (CTA)
1280x1024@60Hz (DMT)
1600x1200@60Hz (DMT)
1920x1080@60Hz (DMT)
1920x1080@23.98Hz/24Hz/47.95Hz/48Hz/50Hz/59.94Hz/60Hz/119.88Hz/120Hz (CTA)
2560x1440@59.95Hz/120Hz (CVT)
3840x2160@23.98Hz/24Hz/47.95Hz/48Hz/50Hz/59.94Hz/60Hz/119.88Hz/120Hz (CTA)
3840x2160@60Hz/120Hz (CVT)
Uniformity compensation function
Yes
• Pixel Pitch : 0.15525 (H) x 0.15525 (V) mm
• Surface : Edge-to-edge tempered glass with AG etching
• Brightness : 400 cd/m2 (typ)
• Displayable Colors (maximum) : 1.07 billion (30 bit colors)
• Color Gamut Coverage Ratio : DCI-P3 98% (CIE 1931) (typ)
Adobe RGB 99% (CIE 1931) (typ)
Pantone™ Validated and Pantone SkinTone™ Validated certifications
• Aspect Ratio : 16:9
• Viewing Angle : 178° (89°/89°) H, (89°/89°) V (typ)
• Contrast Ratio : 1000:1 (typ)
• Response Time : 10 ms (typ)
• Pen : Wacom Pro Pen 3
• Pen Technology : Electromagnetic resonance technology
• Pen Pressure levels : 8192 levels
• Supported Pen Tilt Angle : 60 degrees
• Pen Resolution : 5080 lpi
• Pen Type : Pressure-sensitive, cordless, battery-free
• Switches : 3 or 0 side switches
• Replacement Nibs : 10 nibs
• Stand Adjustability : Optional Wacom Cintiq Pro 27 Stand that supports tilt, lift, and rotation; the stand attaches by a standard 100 x 100 mm VESA mount.
• Productivity Boosters : ExpressKeys™ - Yes (total 8 keys)
Touch on/off switch
Dedicated pan, scroll, zoom, brush size
Precision Mode
Radial Menu
Display Toggle
On-screen controls
Pen gestures
Compatibility & Connectivity
• Operating system requirements
PC: Windows® 10 or later (Latest service pack/ build)
Mac: macOS 10.15 or later (Latest update)
• Hardware Requirements
USB-C port with DisplayPort Alternate Mode* or HDMI* port or DisplayPort and USB-A port
Internet access for driver download
*Ports on host PC 3840 x 2160@120Hz to show maximum resolution on Wacom Cintiq Pro 27
• I/O connectors
1x mini DisplayPort
1x HDMI
2x USB Type-C
1x USB Standard-A
• Power Input Voltage : 100 to 240 VAC, 50/60Hz
• Power Output Voltage : 19.0V / 8.4A
• Security : Kensington® Security Slot
Storage Temperature and Humidity :
• Temperature: -10 to 60 degree C
• Humidity : 30% to 90% RH (non-condensing)
• Maximum storage humidity is 90% at a temperature of 40 degree C, and maximum storage temperature is 60 degree C at a humidity of 30%.
Operating Temperature and Humidity :
• Temperature: 5 to 40 degree C
• Humidity: 30% to 80% RH (non-condensing)
• What's Included
Wacom Cintiq Pro 27
Wacom Pro Pen 3 with 2 extra grips, 3 extra button plates, and a balance piece
a detachable pen holder with 10 replacement nibs (5 standard, 5 felt) and nib removal tool
PVC-free USB-C to USB-C cable (1.8 m)
PVC-free USB-C to USB Standard A cable (1.8 m)
PVC-free HDMI cable (1.8 m)
PVC-free Mini DisplayPort to DisplayPort cable
PVC-free AC adaptor
power cord (1.0 m)
quick start guide
• Warranty : 1 year
