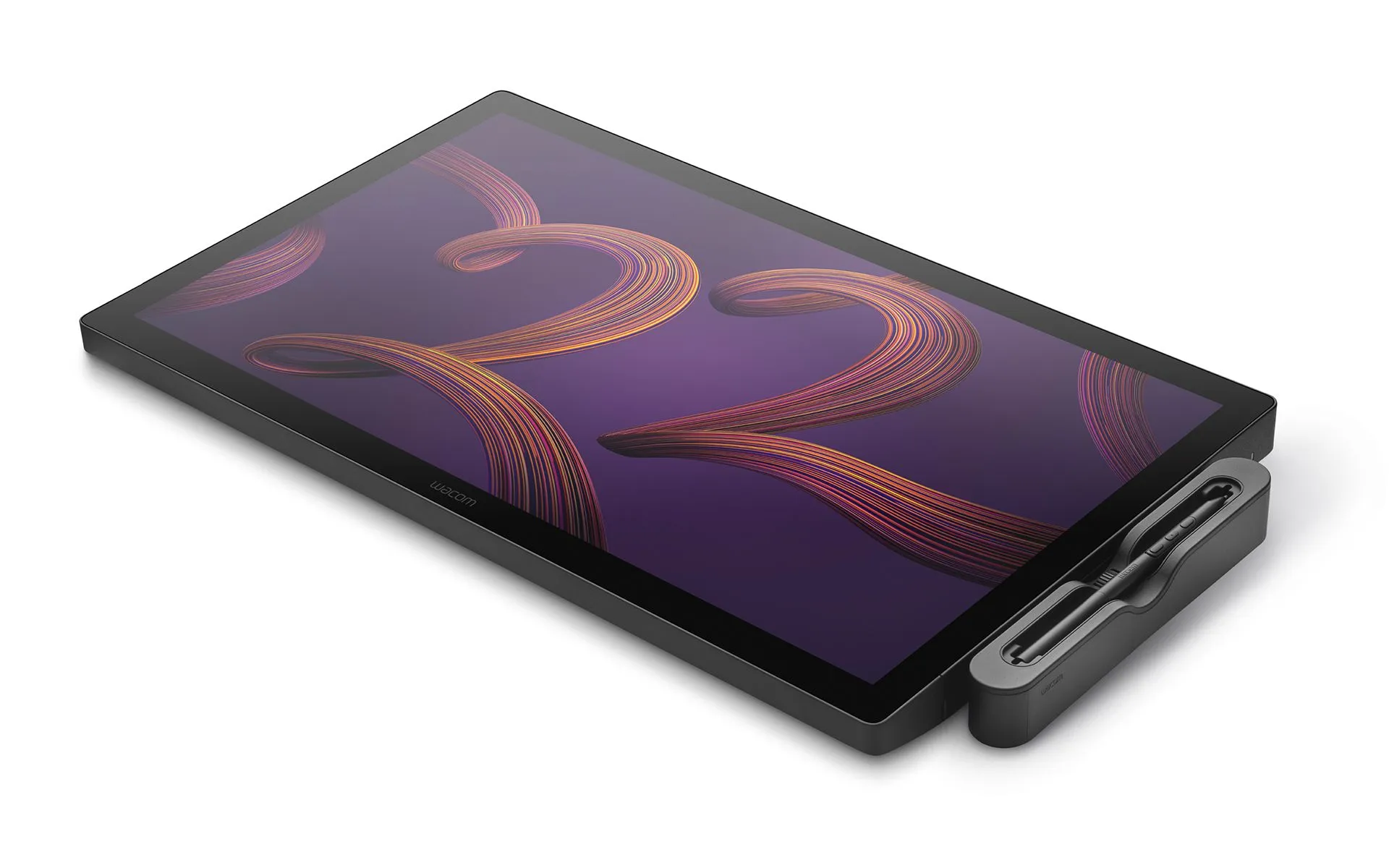

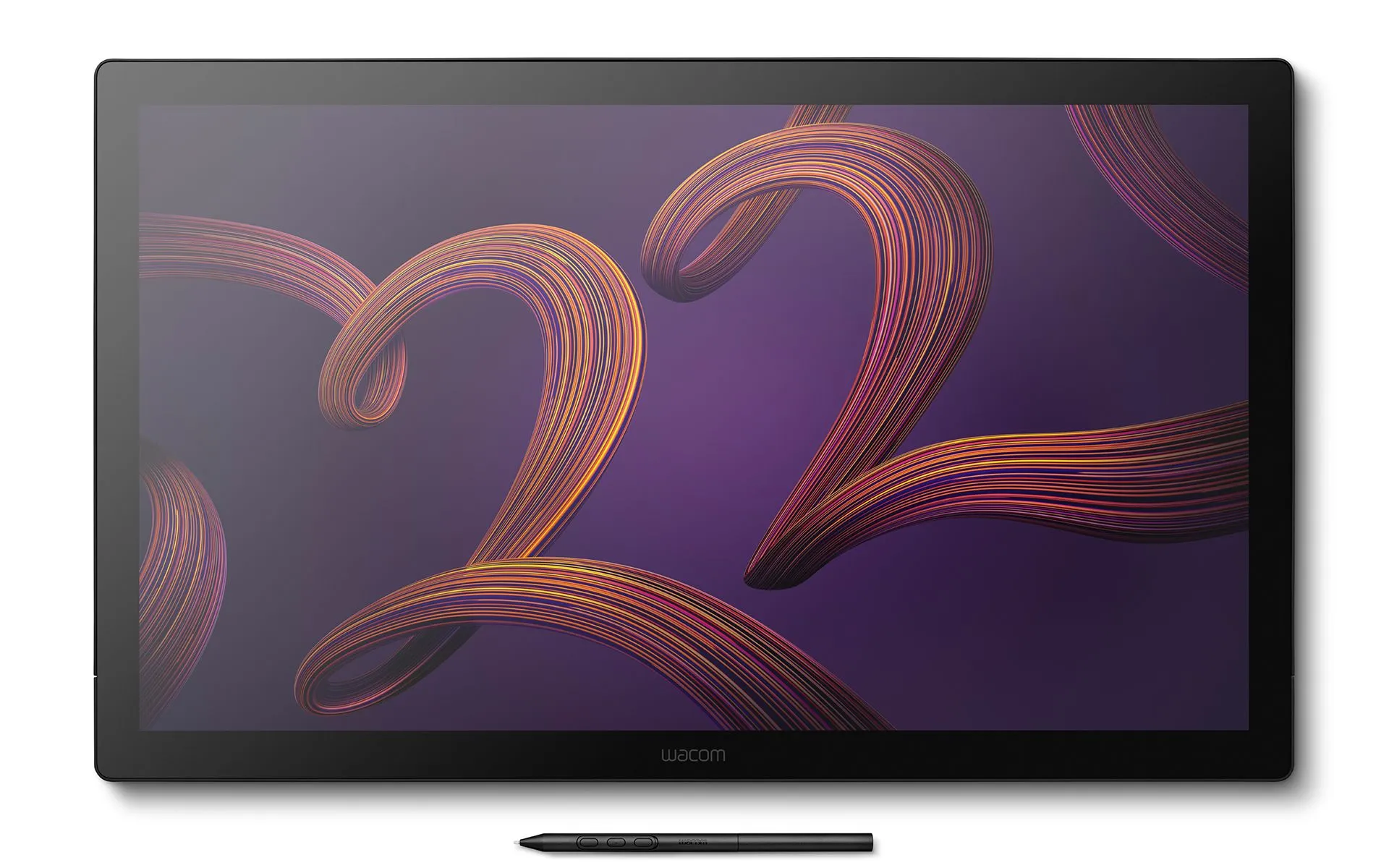

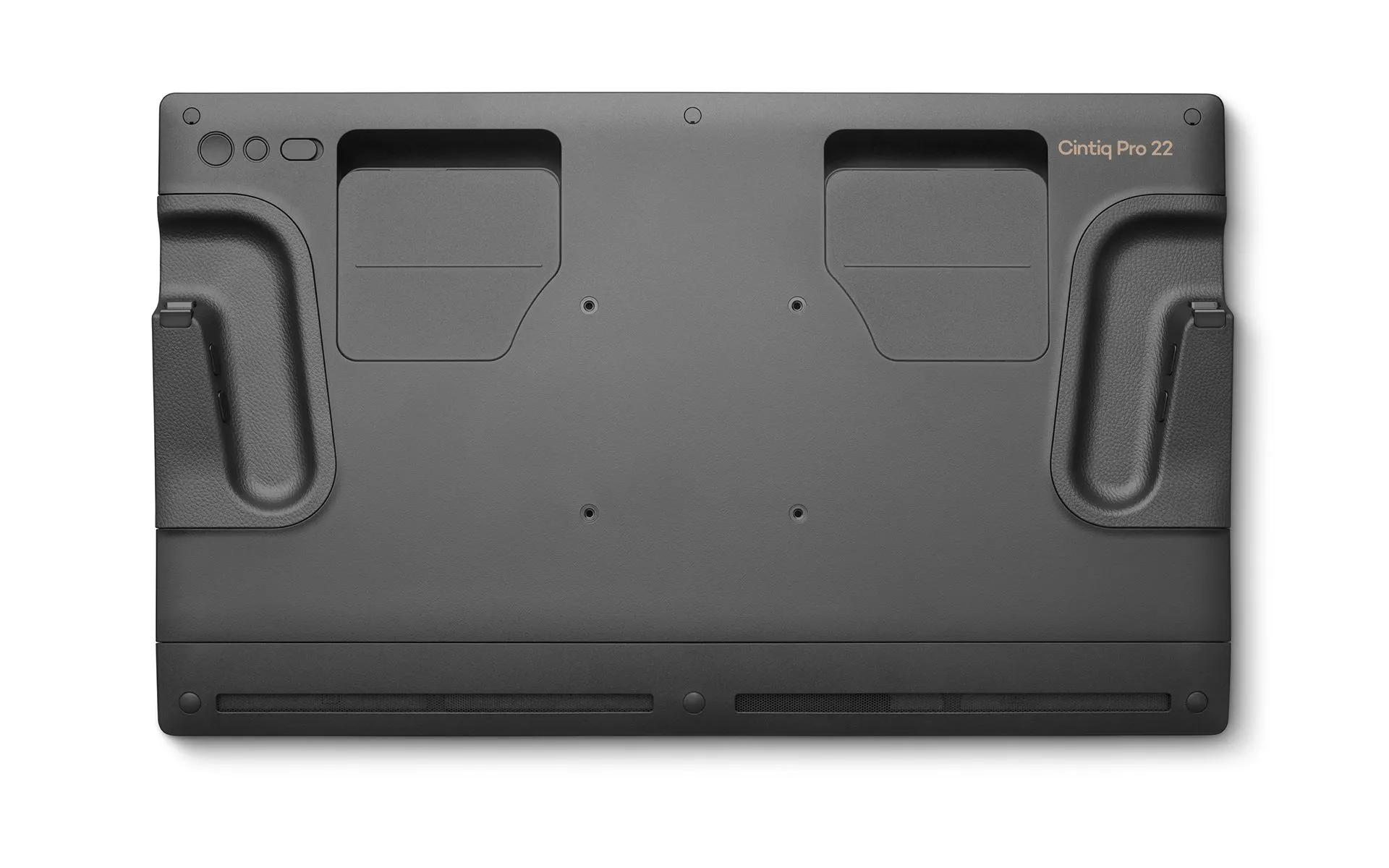

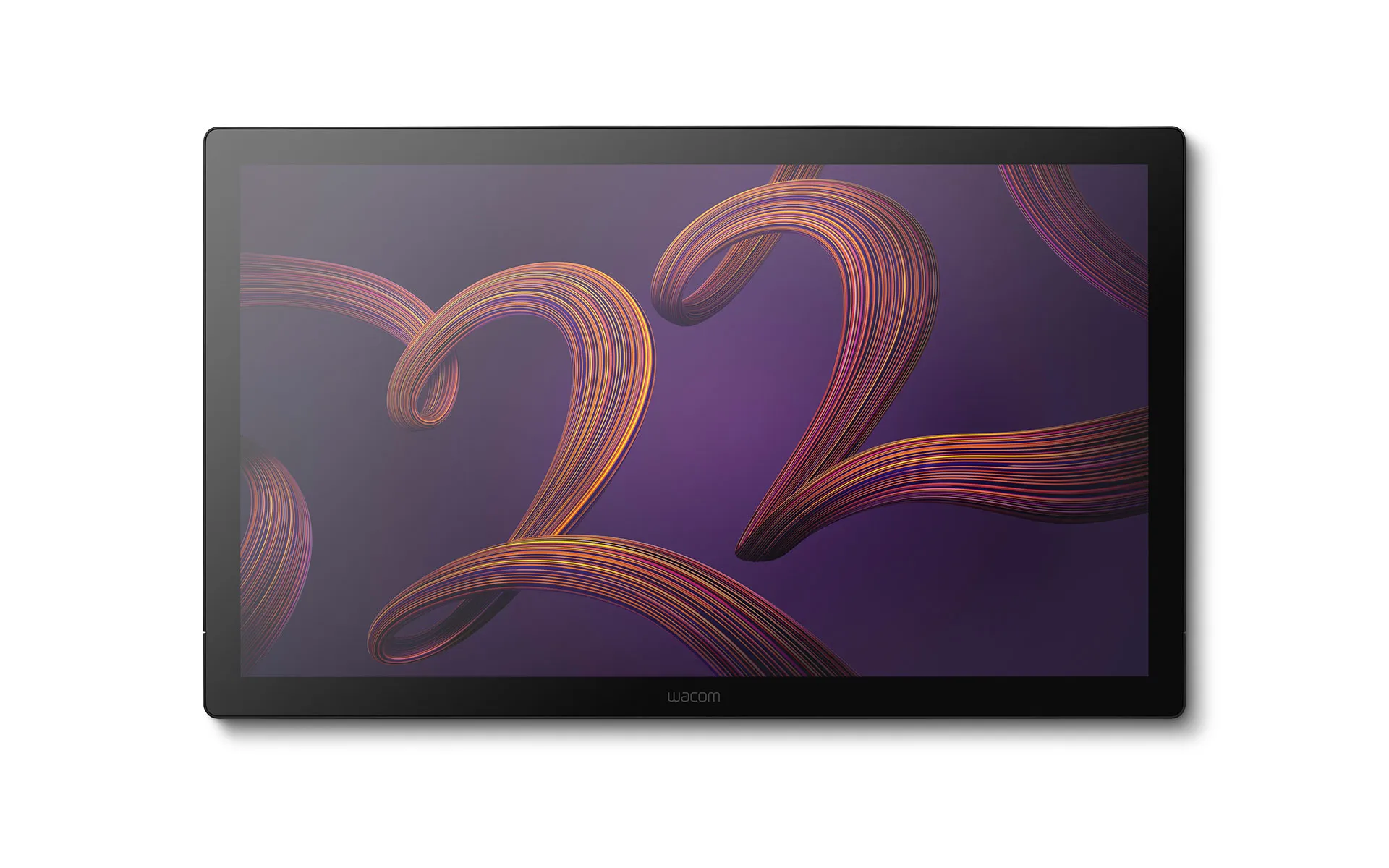

Cintiq Pro 22
• Product Type : Creative Pen Display
• Model Code : DTH-2270/K0
• Product Weight : 5.0 kg / 11.0 lbs
• Product Dimensions : 312 x 517 x 30 mm (12.3 x 20.3 x 1.2 inch)
• Product Color : Black

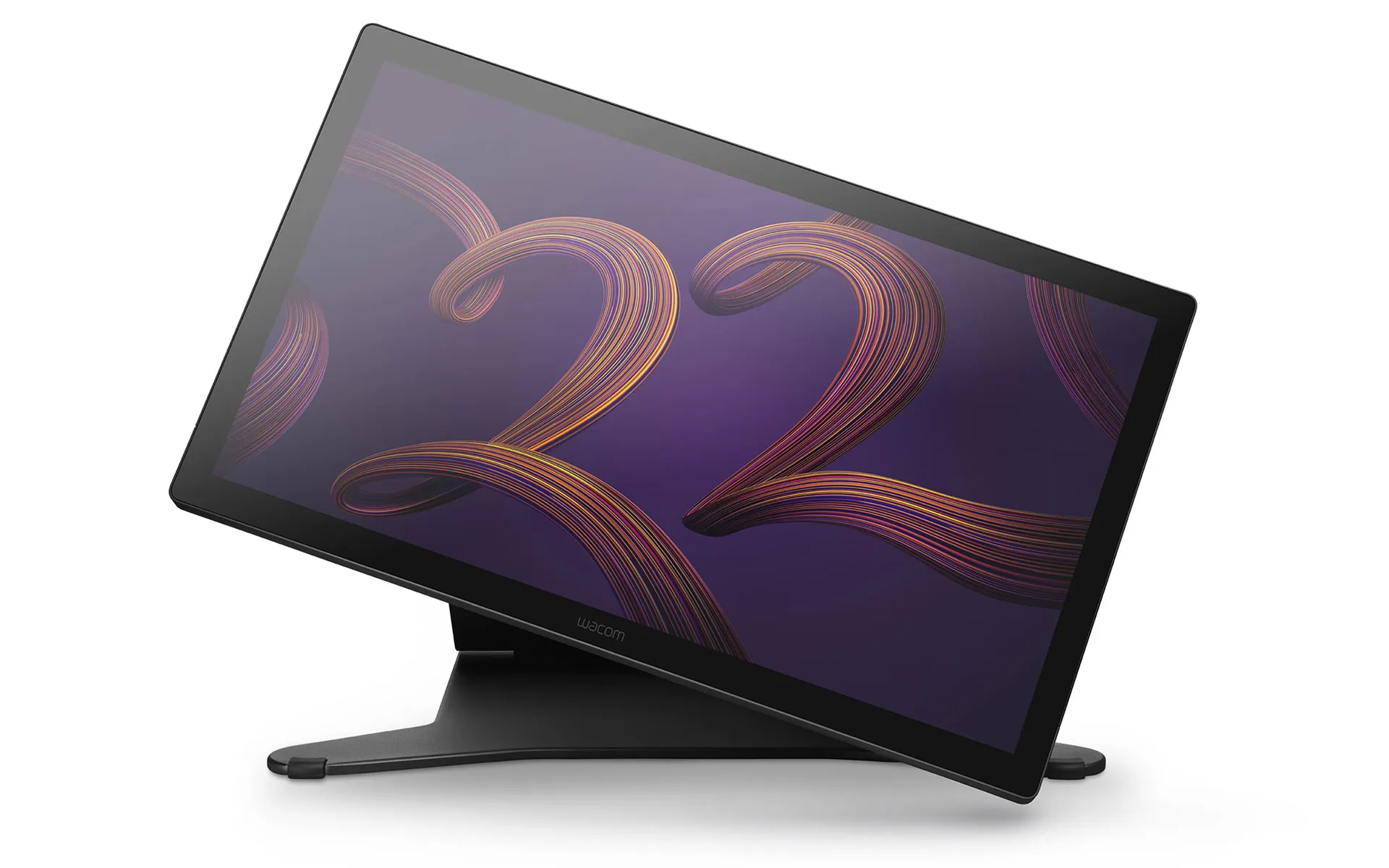

• Stand Adjustability : Optional Wacom Cintiq Pro 22 Stand that supports tilt, lift, and rotation; the stand attaches by a standard 100 x 100 mm VESA mount
• Productivity Boosters : ExpressKey™ - Yes (total 8 keys)
Touch on/off switch
Dedicated pan, scroll, zoom, brush size
Precision Mode
Radial Menu
Display Toggle
On-screen controls
Pen gestures
• Power Input Voltage : 100 to 240 VAC, 50/60Hz
• Power Output Voltage : 19.0V / 8.4A
• Security : Kensington® Security Slot
• Storage Temperature and Humidity
Temperature: -10 to 60 degree C
Humidity: 30% to 90% RH (non-condensing)
Maximum storage humidity is 90% at a temperature of 40 degree C, and maximum storage temperature is 60 degree C at a humidity of 30%.
Operating Temperature and Humidity
Temperature: 5 to 40 degree C
Humidity: 30% to 80% RH (non-condensing)
• Screen Size (measured diagonally) : 21.5 in (54.6 cm)
• Active Area : 476 x 268 mm (18.7 x 10.5 in)
• Display Technology : IPS
• Touch Technology : Projected capacitive
• Multi-touch : Yes - 10 fingers
• Display Resolution : 3840 x 2160 pixels
• Supported Resolution :
640x480@60Hz (VGA)
720x400@70Hz (IBM_VGA)
720x480@60Hz
720x576@50Hz
800x600@60Hz (SVGA)
1024x768@60Hz (XGA)
1280x720@50Hz/60Hz (HD)
1280x1024@60Hz (SXGA)
1600x1200@60Hz (UXGA)
1920x1080@24Hz/48Hz/50Hz/60Hz/120Hz (FHD)
2560x1440@60Hz/120Hz (WQHD)
3840x2160@24Hz/48Hz/50Hz/60Hz/120Hz
• Uniformity compensation function : Yes
• Pixel Pitch : 0.12398(H) x 0.12398(V) mm
• Surface : Edge-to-edge tempered glass with AG etching
• Brightness : 300 cd/m2 (typ)
• Display Colors (maximum) : 1.07 billion (Color depth: 10bit x RGB = 30bit)
• Color Gamut Coverage Ratio
DCI-P3 99% (CIE 1931) (typ)
Adobe RGB 88% (CIE 1931) (typ)
Rec.709 100% (CIE1931) (typ)
Pantone™ Validated and Pantone SkinTone™ Validated certifications
• Aspect Ratio : 16:9
• Viewing Angle : 170° (85°/85°) H, (85°/85°) V (typ)
• Contrast Ratio : 1200:1 (typ)
• Response Time : 12 ms (typ)
• Pen : Wacom Pro Pen 3
• Pen Technology : Electromagnetic resonance technology
• Pen Pressure levels : 8192 levels
• Supported Pen Tilt Angle : 60 degrees
• Pen Resolution : 5080 lpi
• Pen Type : Pressure-sensitive, cordless, battery-free
• Switches : 3 or 0 side switches
• Replacement Nibs : 10 nibs
• Operating system requirements :
PC: Windows® 10 or later (Latest service pack/ build)
Mac: macOS 11 or later (Latest update)
• Hardware Requirements :
USB-C port with DisplayPort Alternate Mode* or HDMI* port or DisplayPort and USB-A port
Internet access for driver download

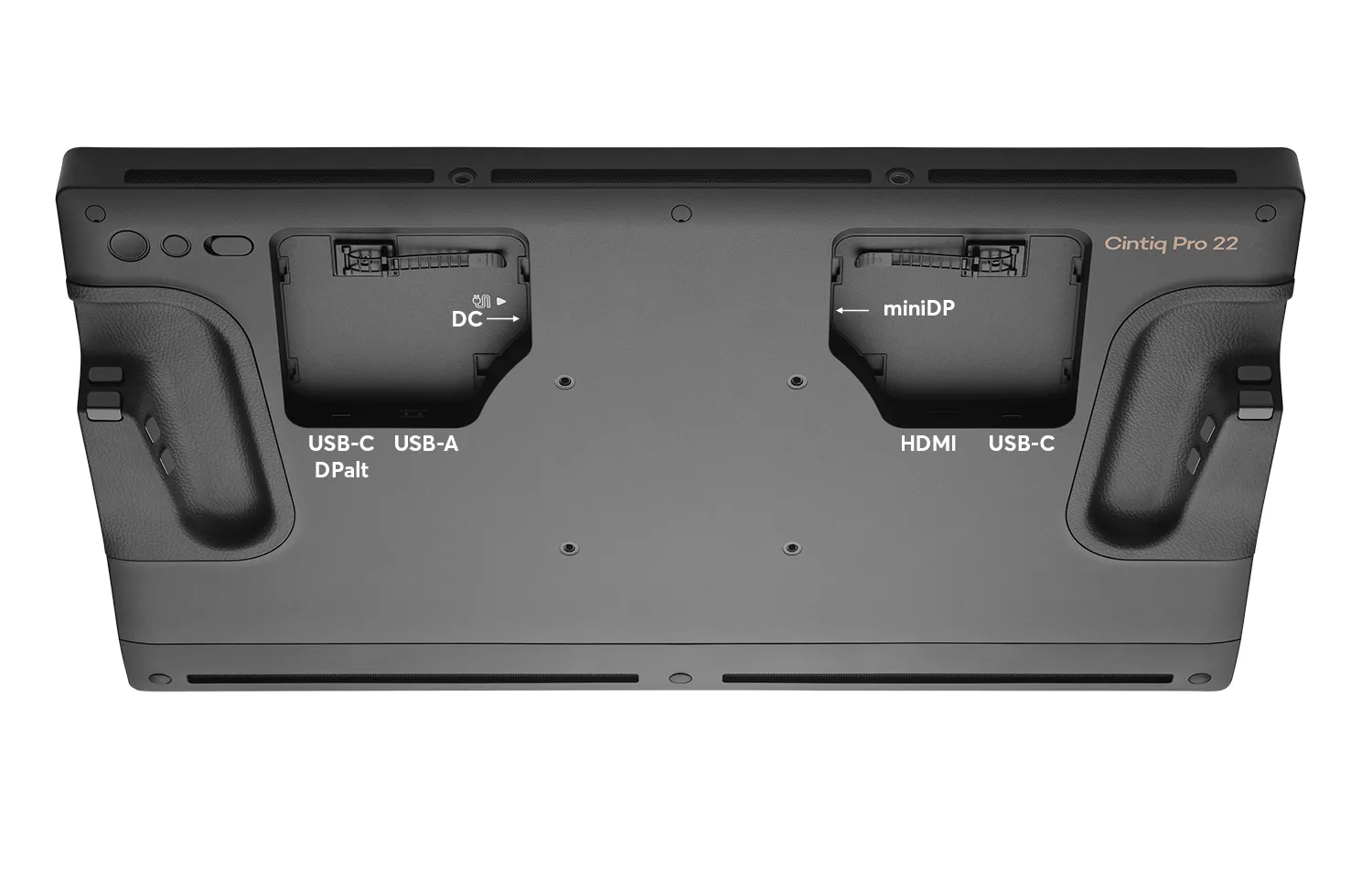

• I/O connectors :
1x mini DisplayPort
1x HDMI
2x USB Type-C
1x USB Standard-A

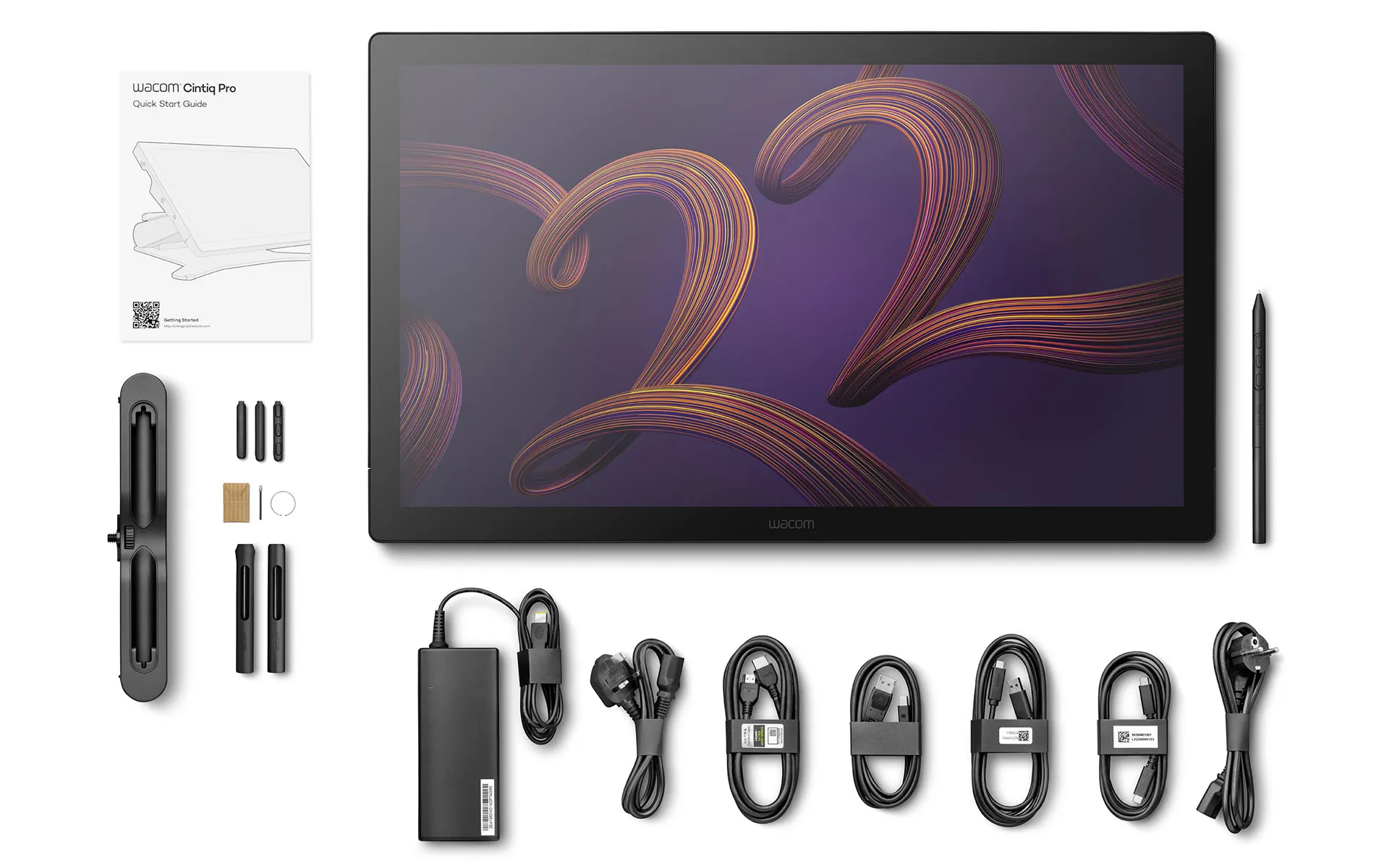

• What's Included :
Wacom Cintiq Pro 22
Wacom Pro Pen 3 with 2 extra grips, 3 extra button plates, and a balance piece
a detachable pen holder with 10 replacement nibs (5 standard, 5 felt) and nib removal tool
USB-C to USB-C cable (1.8 m)
USB-C to USB Standard A cable (1.8 m)
HDMI cable (1.8 m)
Mini DisplayPort to DisplayPort cable (1.8 m)
AC adapter
power cord (1.0 m)
quick start guide
Regulation sheet
• Warranty : 1 year
การรับประกัน : รับประกัน 1 ปี
