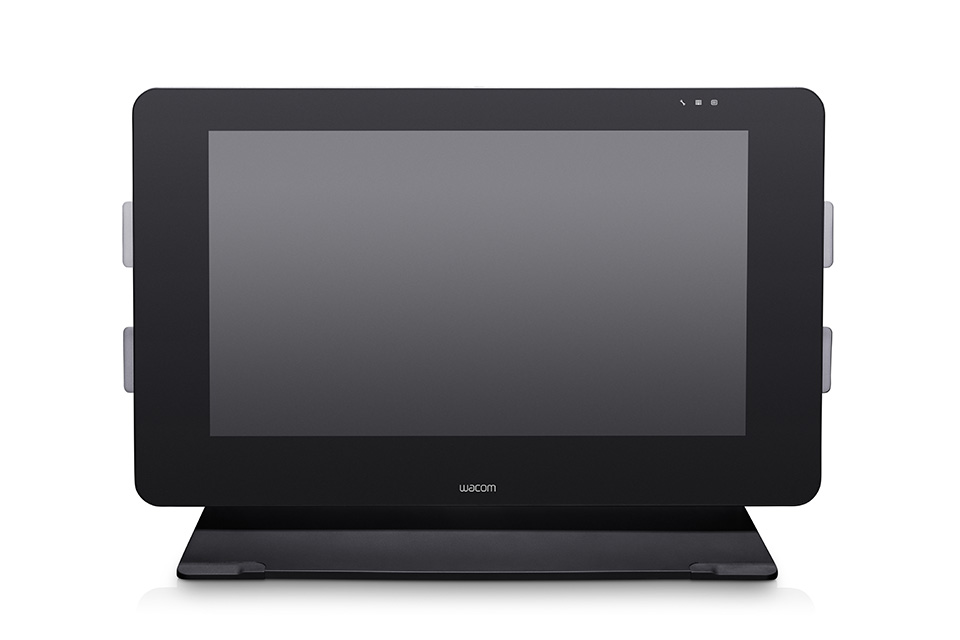

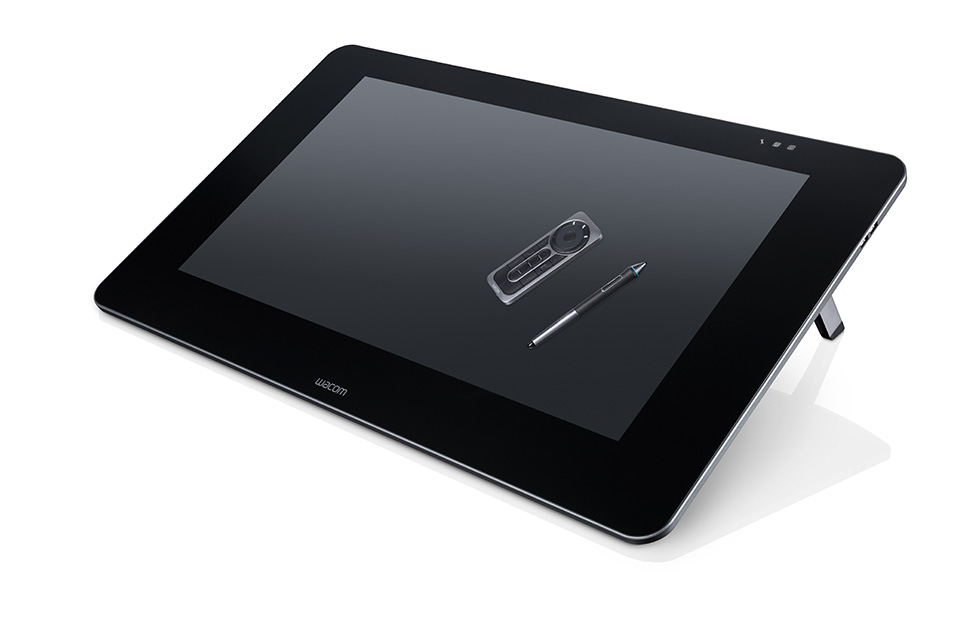

Cintiq 27QHD

Tools might transform, but artistry remains. The Cintiq 27QHD creative pen display sets a new standard in color, resolution and productivity. The most natural forms of creative expression meet the most advanced interface design to let you create with a pressure-sensitive pen directly on a 27-inch edgeless glass display.

• Product Type : Creative pen display

• Size : 770 x 465 x 54.5 mm (30.3 x 18.3 x 2.1 inch)

• Weight : 19.8 lbs. without stand (9 kg) 55.1 lbs. ,  with stand (25.1 kg)

• Screen Size : (Measured Diagonally) 68.6 cm (27 inch)

• Technology : AHVA LCD (propietary IPS)

• Displayable Colors (maximum) : 1.07 billion (Requires DisplayPort and video card supporting 10 bit color)

• Aspect Ratio : 16:9

• Viewing Angle : 178° (89°/89°) H, (89°/89°) V

• Contrast Ratio : 970:1

• Brightness : 330 cd/m2

• Response Rate : 12ms

• Active Area : 596.7 x 335.6 mm (23.5 x 13.2 inch)

• Color Gamut : 97% Adobe RGB

• Industry Standard Pre-sets : Adobe RGB, 6500° K whitepoint default; DCI, REC 709, SRGB

• Graphics Input : DisplayPort (required for 2560x 1440 resolution), HDMI (depends on computer)

• Multi-Touch : No

• Pen : Pro Pen

• Pressure Levels : 2048, both pen tip and eraser

• Tilt Range : 40 degrees

• Tilt Recognition : ±60 levels

• Type : Pressure-sensitive, cordless, battery-free

• Switches : Tip switch, 2 side switches, eraser

• Nibs : 10 standard

• Pen Box : No

• Pen Stand Yes

• Grip : Latex-free silicone rubber

• Mode :l KP-503E

• Technology : Patented electromagnetic resonance method

• Resolution : 5080 lpi

• ExpressKeys™ : 17 customizable on ExpressKey Remote

• Touch Ring : Yes, on ExpressKey™ Remote

• Touch Strips : No

• Radial Menu : Yes

• Precision Mode : Yes

• Display Toggle : Yes

• Dedicated : Pan, Scroll, Zoom, Brush Size Yes

• ExpressKey™ Remote Dimensions : 135 x 52 x 10 mm (5.3 x 2.0 x .4 inch)

• ExpressKey™ Remote Continuous Operation : Up to 160 hours

• ExpressKey™ Remote Charge Time : Up to 2 hours

• Stand : Adjustability Built-in stand (5° w/o legs or 20° w/ legs); optional Cintiq Ergo stand sold as accessory

• Orientation : Right or left-handed use

• Size : 32.3” W x 20.1” H x 15.4” D (820 x 510 x 390 mm)

• Cables Included : Cables: DisplayPort, HDMI, USB 3.0, Micro USB (ExpressKey Remote); Adaptors: DVI-D TO HDMI, Mini DisplayPort to DisplayPort

• PC And Mac Connection : USB

• Display Connection : DisplayPort and HDMI

• Peripheral Connections : Five USB 3.0 ports

• Power Supply Input : 100 to 240 VAC, 50/60Hz

• Power Supply Output : 24 VDC, 5.0A (max)

• Power Consumption : 80 W, .5 W in sleep mode, .5 W off mode

• System Requirements : PC: Windows®7 (32/64 bits), 8 , Mac: Mac OS X, v 10.5.8 or later

• What's Included : Cintiq 27HD Creative pen display

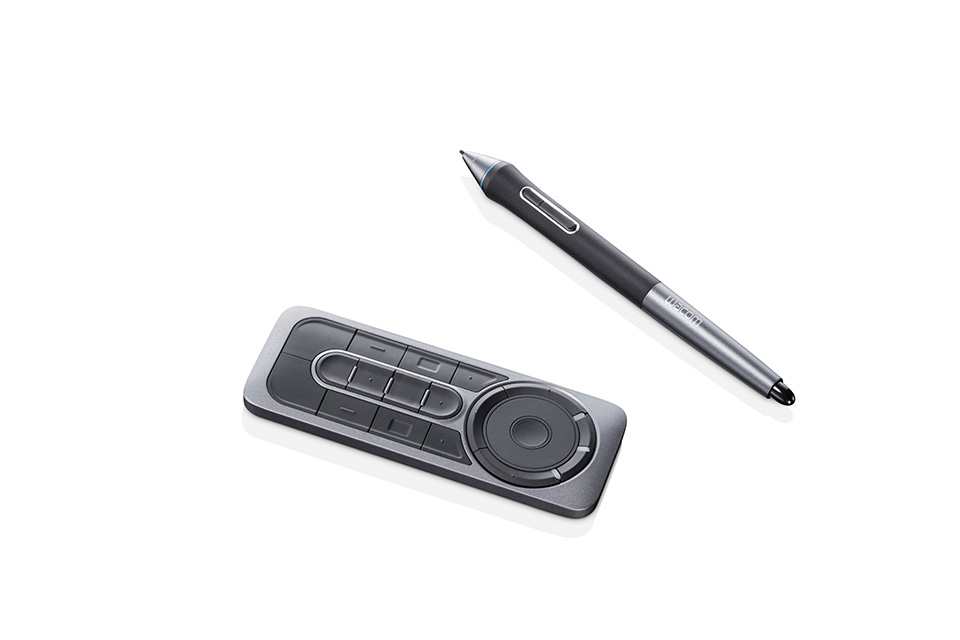

Pro Pen

Pen stand with 10 replacement nibs & nib removal tool

ExpressKey™ Remote

Cables: DisplayPort, HDMI, USB 3.0, Micro USB (ExpressKey Remote); Adaptors: DVI-D TO HDMI, Mini DisplayPort to DisplayPort

AC power adaptor

Installation CD

Quick start guide

• Certifications : VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM

• Model Number : DTK-2700

• Limited Warranty : 1-years
