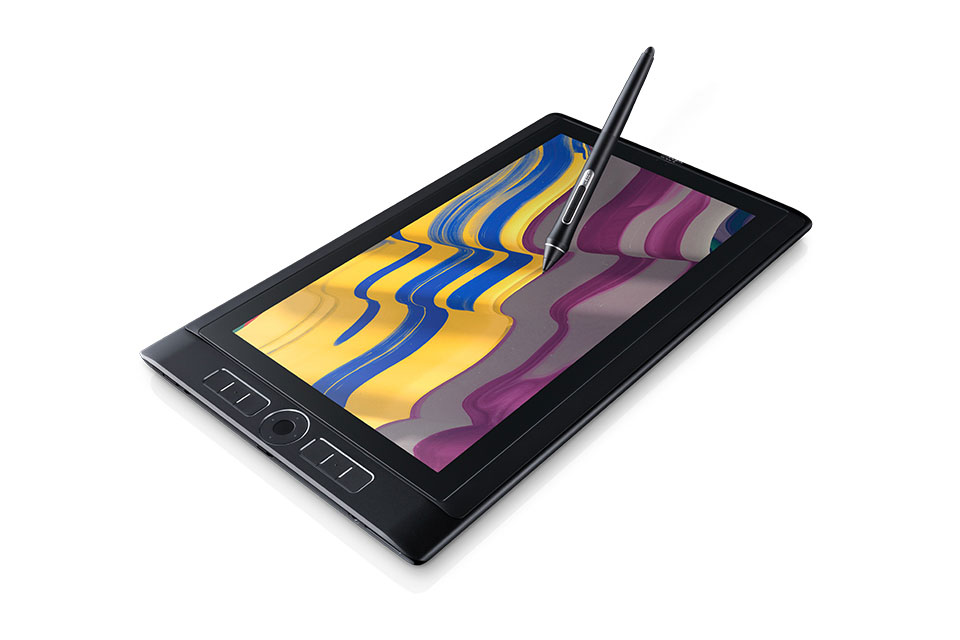

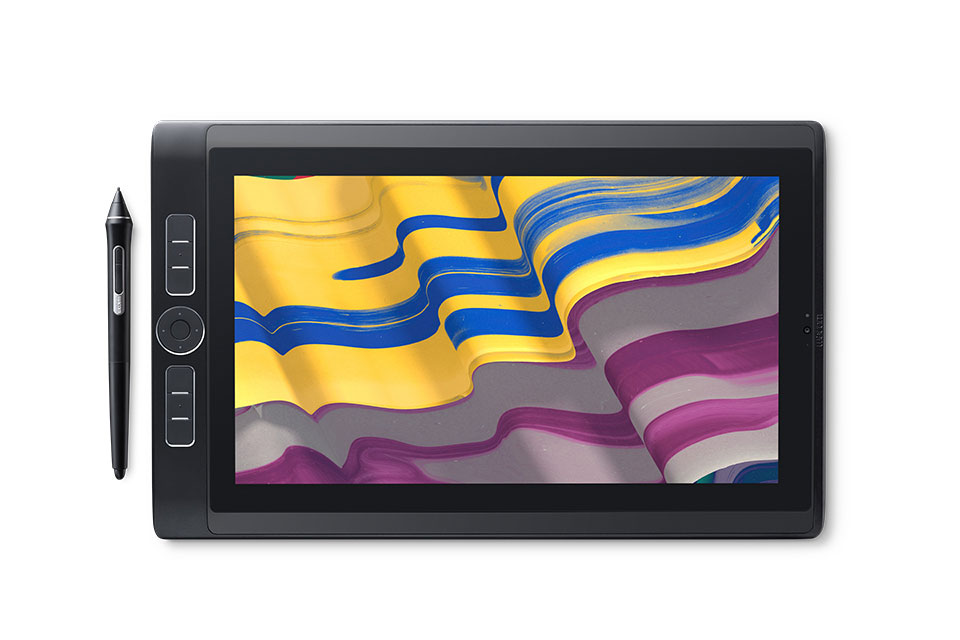

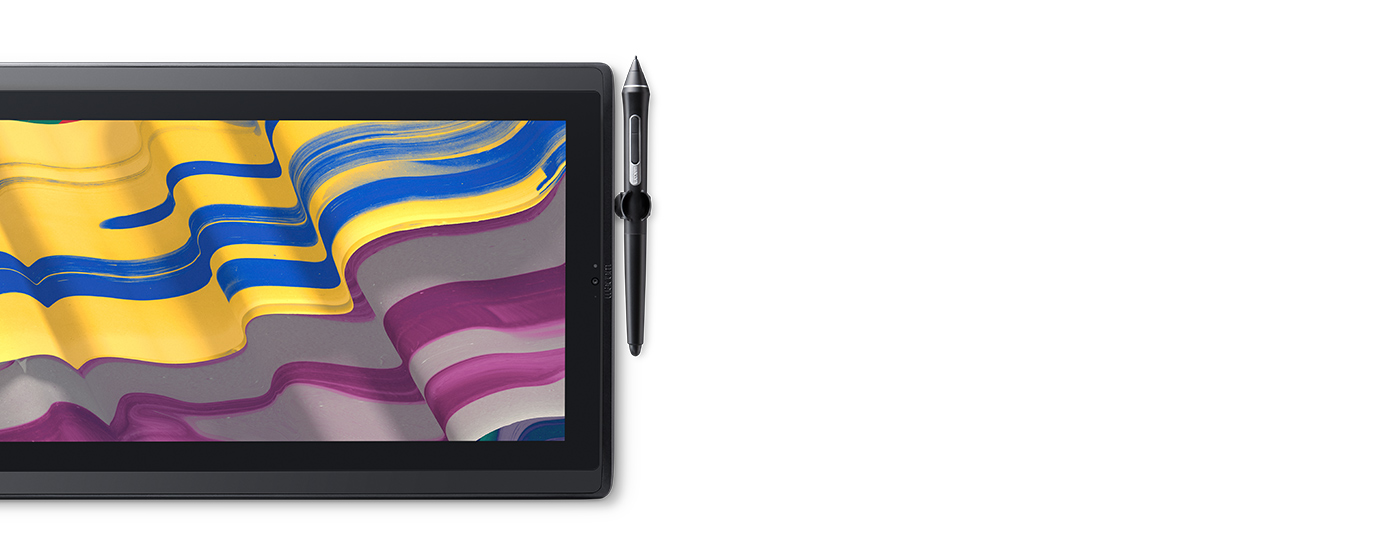

Wacom MobileStudio Pro 13 (512 GB)
• Model Number : DTH-W1320H
• Display : 13.3 inch (33.8 cm),N/A
• Resolution : WQHD (2560 x 1440)
• Advanced Control : 8192 levels pen pressure, tilt and multi-touch
• Productivity Boosters : ExpressKeys™, on-screen controls, time-savings settings
• Ergonomics : Right or left-handed use, adjustable optional stand
• Compatibility : Windows 10 - Stand-alone Windows, Mac - when attached with optional Wacom Link
• Processor : Intel Core i7-6567U (3.3GHz)
• Graphics Card : Intel® Iris™ Graphics 550
• Storage : 512GB Solid state drive (SSD),Kensington Security Slot; Fingerprint Sensor on
select models
• Product Type : Creative Pen Computer
• Micro SD Slot : SDXC card (uhs-ii)
• RAM : 16 GB DDR3
• Expandable Memory : No
• Expandable Storage : Memory card or external HDD
• Multi-Touch : Yes

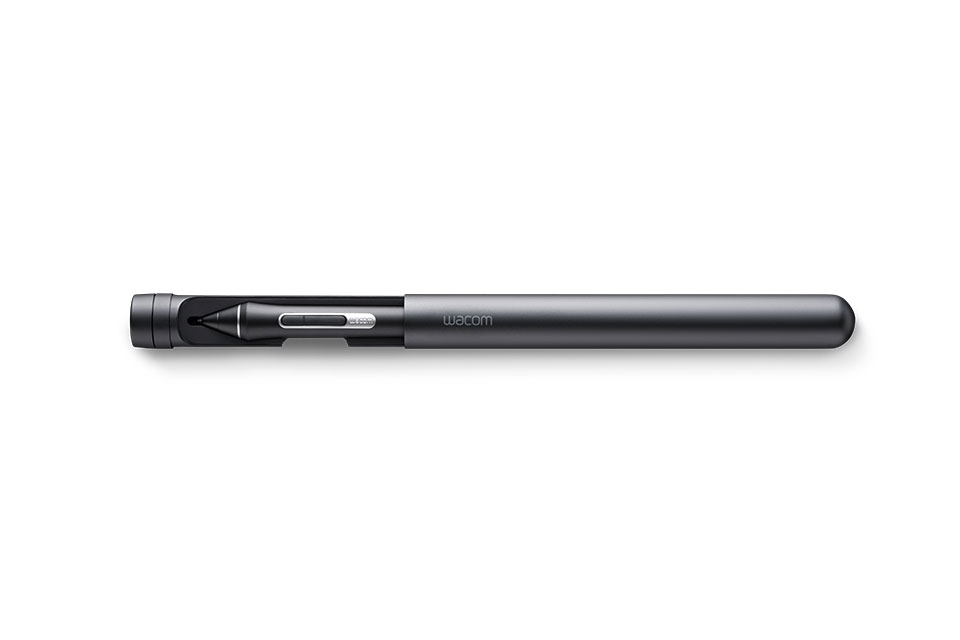

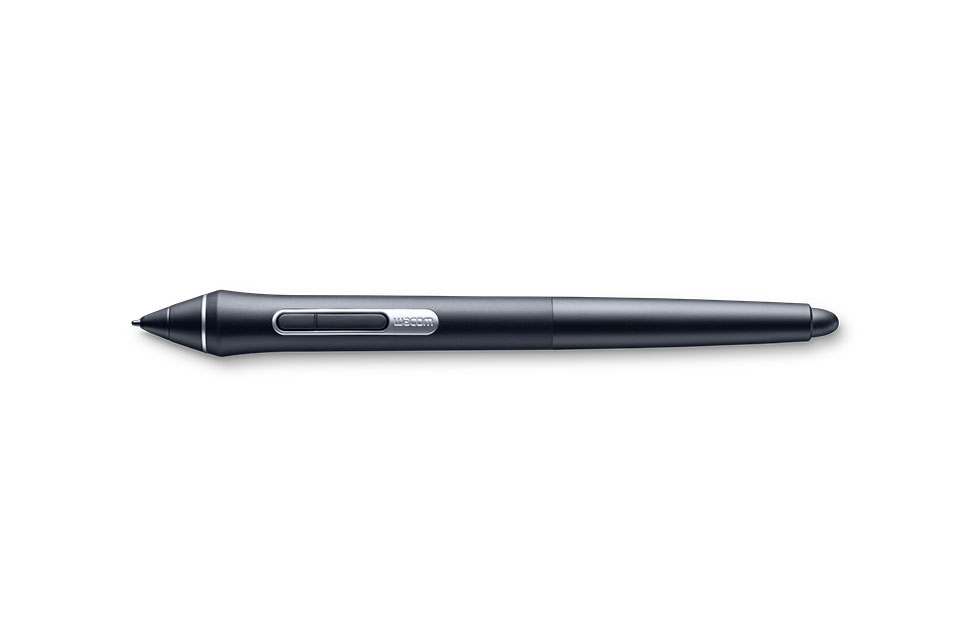

• Pen : Wacom Pro Pen 2
• Pressure Levels : 8192, both pen tip and eraser
• Tilt Range : ± 60 degree
• Tilt Recognition : ±60 levels
• Type : Pressure-sensitive, cordless, battery-free
• Switches : 2 side switches
• Extra Nibs : 3 extra nibs (2 standard, 1 felt)

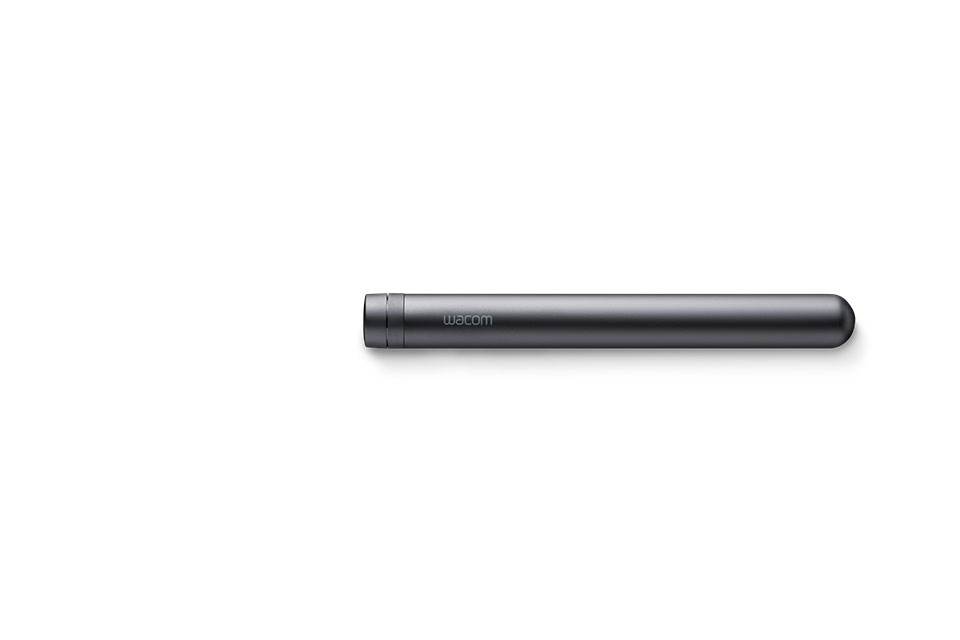

• Pen Carrying Case :Yes
• Pen Stand : No
• Pen Holder : Yes
• Grip : Latex-free silicone rubber
• Technology : Patented electromagnetic resonance method,LED
• Weight : 1420 g / 3.13 lbs
• Size : 367 x 229 x 16 mm (14.4 x 9 x 0.6 inch)
• Displayable Colors (maximum) : 16.7 million
• Screen Size (Measured Diagonally) : 13.3 inch (33.8 cm)
• Viewing Angle : 178° (89°/89°) H, (89°/89°) V
• Aspect Ratio : 16:9
• Contrast Ratio : 800:1
• Brightness : 150cd/m2
• Active Area : 294 x 165 mm (11.6 x 6.5 in)
• Graphics Input : USB-C (for optimum performance) or Mini DisplayPort using optional
Wacom Link
• Color Gamut : 96% Adobe RGB
• Response Rate : 25 ms
• Industry Standard Pre-sets : Adobe RGB, 6500 deg. , K white point default: DCI, REC 709, SRGB
• Operating System : Windows 10 Pro

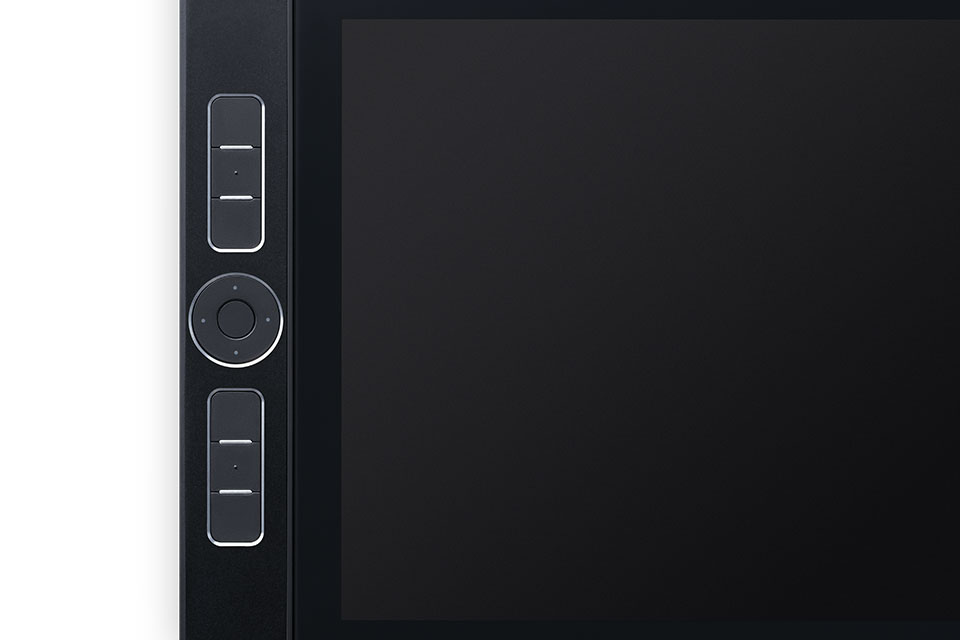

• ExpressKeys™ : 6 customizable, application-specific
• Touch Ring : Yes on Rocker Ring
• Touch Strips : No
• On-Screen Controls : Yes
• Rocker Ring And Home Button : 4 position customizable with default TouchRing function and home button
• Radial Menu : Yes
• Precision Mode : Yes
• Display Toggle : Yes when attached to Mac or PC using optional Wacom Link
• Dedicated Pan, Scroll, Zoom, Brush Size : Yes
• Stand Adjustability : optional detachable Wacom stand with 3 angles (22, 35 & 50 degree)
• Orientation : Right or left-handed use
• Cables Included : AC adaptor and power cable
PC And Mac : Optional Wacom Link with USB-C, Mini DisplayPort and USB cables.
Optimum performance using certified USB-C cable to USB-C port.
• Video Out : USB-C

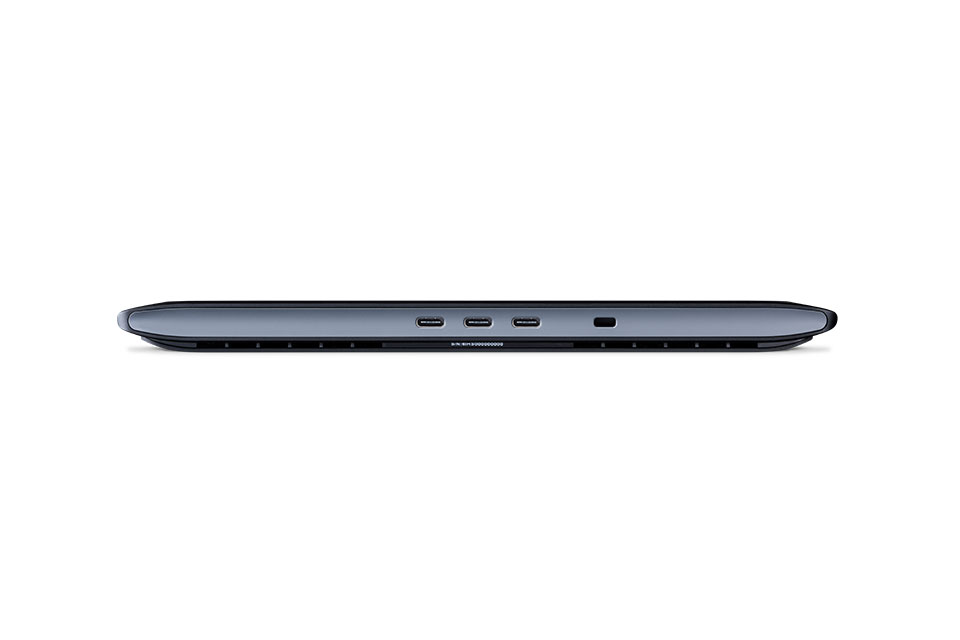

• Peripherals : 3 USB-C ports
• Other Connections : 1 Headset (Audio/combo)
• Network : Bluetooth® 4.1 technology
• Wireless : 802.11 ac
• Sensors : GPS, electronic compass, accelerometer, ambient light, gyro

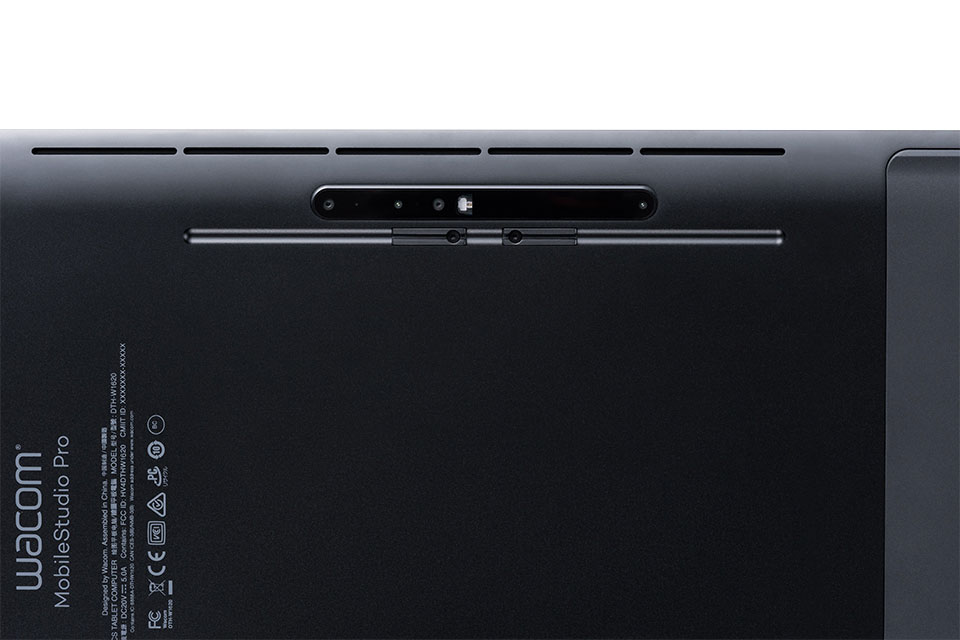

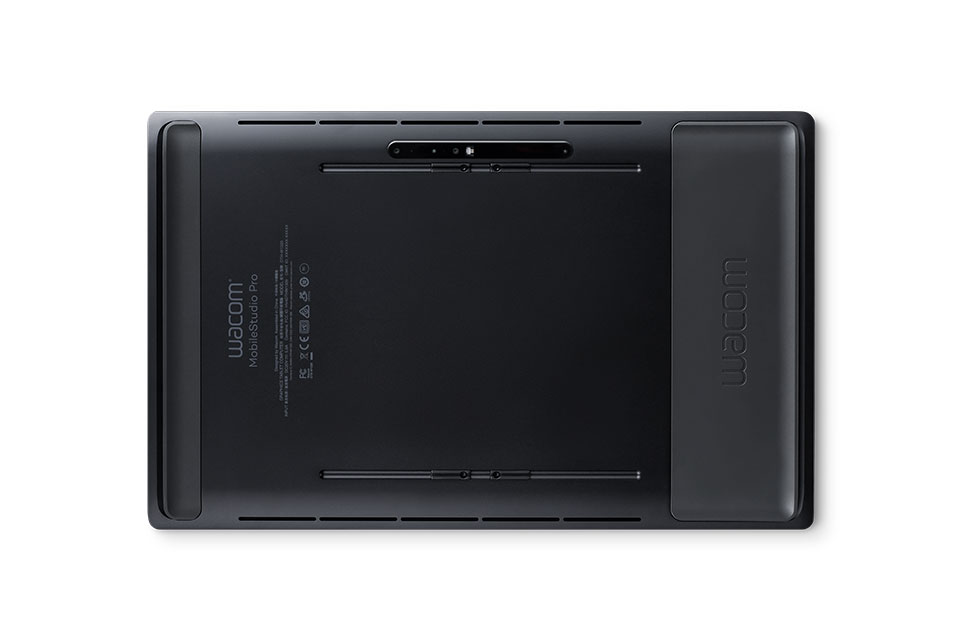

• Cameras : Front: 5 MP HD , Back: 8 MP HD
Back: Intel® RealSense™ R200 (3D scanning camera) on select models with Artec 3D™ one-year software
• Speakers : 2 x 1.5W
• Power Supply Input : 100 to 240 VAC, 50/60 Hz
• Power Supply Output : 5V/3A (15W), 20V/5A (100W)
• Battery : 11.4 V, Li-polymer, 52Wh
• Power Consumption : 13inch: Maximum power consumption: 96W, 0.9 W when asleep,
0.6 W or less when off
• Battery Life : up to 6 hours*
Note: Battery Life Will Vary. It Depends On How The Products Are Used And Which Device Settings Are Selected.
• Battery Charging Time : up to 2 hours
• System Requirements : With optional Wacom Link: Windows® 7 or later , Mac OS X 10.10 or later, USB-C port (or Mini DisplayPort and USB port)
• Limited Warranty : 1 year
• What's Included : Wacom MobileStudio Pro 13, Wacom Pro Pen 2
pen case with 3 replacement nibs, color rings and nib removal tool pen holder
AC Power Adapter + power cable
Quick Start Guide
Cleaning cloth
Regulation Sheet
การรับประกัน : รับประกัน 1 ปี
