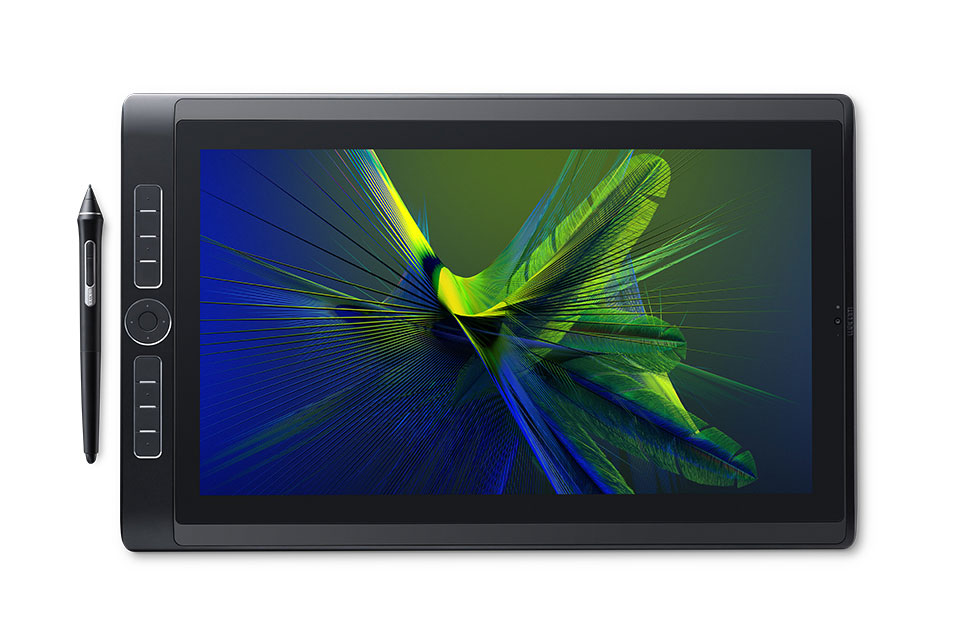

Wacom MobileStudio Pro 16 (512 GB)
• Model Number : DTH-W1620H
• Display Size : 15.6 inch (39.6 cm)
• Resolution : UHD (3840 x 2160)
• Advanced Control : 8192 levels pen pressure, tilt and multi-touch
• Productivity Boosters : ExpressKeys™, on-screen controls, time-savings settings
• Ergonomics : Right or left-handed use, adjustable optional stand
• Compatibility Windows (Stand-alone) , Windows / Mac when attached with optional Wacom Link
• Processor : Intel Core i7-6567U (3.3GHz)
• Graphics Card : NVIDIA® Quadro® M600M 2GB GDDR5
• Storage : 256GB Solid state drive (SSD)
• Product Type : Creative Pen Computer
• Micro SD Slot : SDXC card (uhs-ii)
• RAM : 8 GB DDR3
• Expandable Memory : No
• Expandable Storage : Memory card or external HDD, purchased separately
• Security : Kensington Security Slot; Fingerprint Sensor on select models
• Multi-Touch : Yes

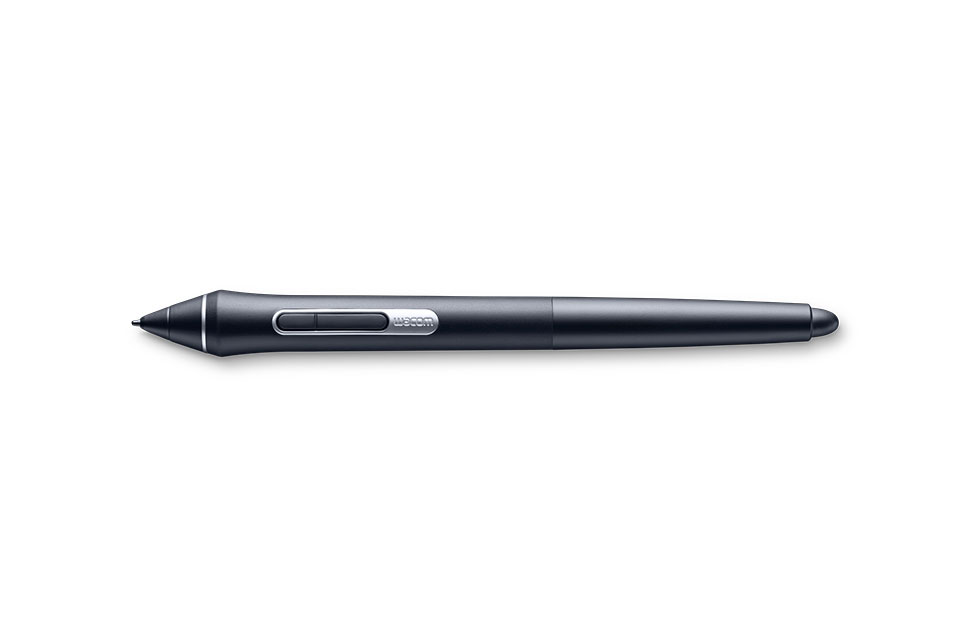

• Pen : Wacom Pro Pen 2
• Pressure Levels : 8192, both pen tip and eraser
• Tilt Range : ± 60 degree
• Tilt Recognition : ±60 levels
• Type : Pressure-sensitive, cordless, battery-free
• Switches : 2 side switches
• Extra Nibs : 3 extra nibs (2 standard, 1 felt)

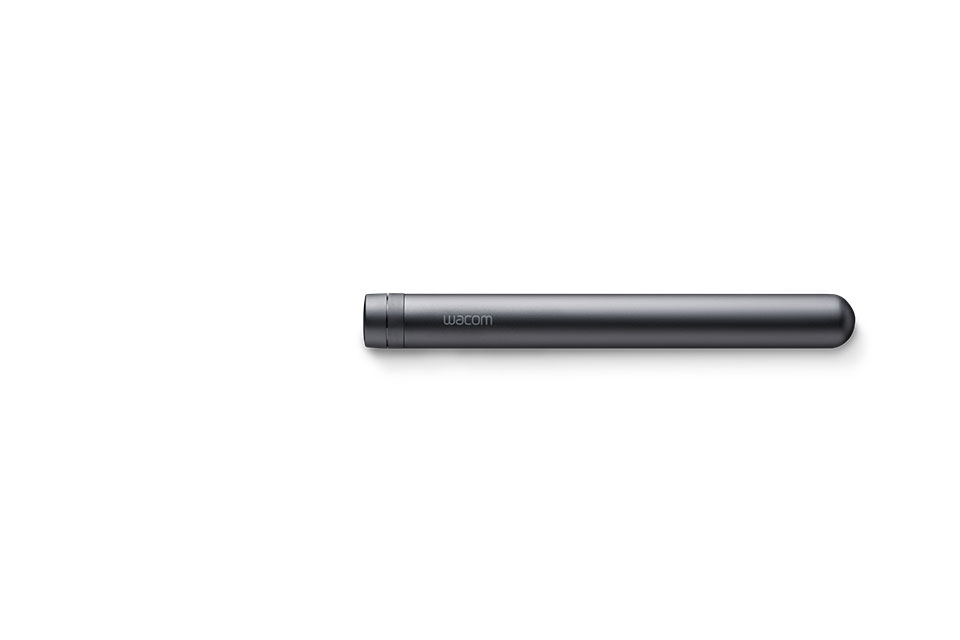

• Pen Carrying Case : Yes
• Pen Stand : No

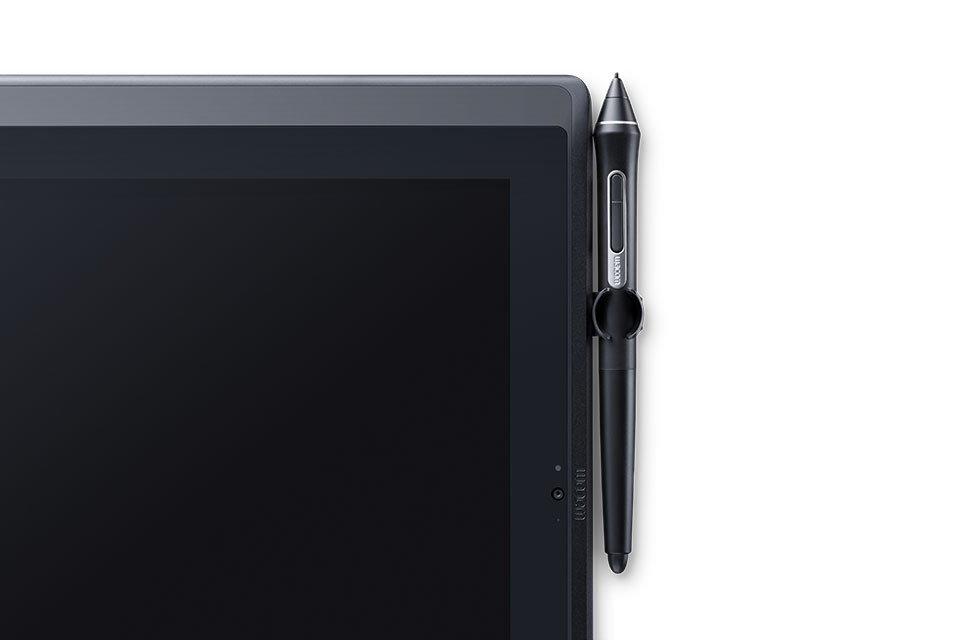

• Pen Holder : Yes
• Grip : Latex-free silicone rubber
• Technology : Patented electromagnetic resonance method,LED
• Weight : 2200 g / 4.85 lbs
• Size : 418 x 262 x 19 mm (16.5 x 10.3 x 0.75 inch)
• Displayable Colors (maximum) : 16.7 million
• Screen Size : 15.6 inch (39.6 cm)
• Viewing Angle : 178° (89°/89°) H, (89°/89°) V
• Aspect Ratio : 16:9
• Contrast Ratio : 1000:1
• Brightness : 150cd/m2
• Active Area : 346 x 194 mm (13.6 x 7.6 in)
• Graphics Input : USB-C (for optimum performance) or Mini DisplayPort using optional Wacom Link
• Color Gamut : 94% Adobe RGB
• Response Rate : 25 ms
• Industry Standard Pre-sets : Adobe RGB, 6500 deg. , K white point default: DCI, REC 709, SRGB
• Operating System : Windows 10 Pro

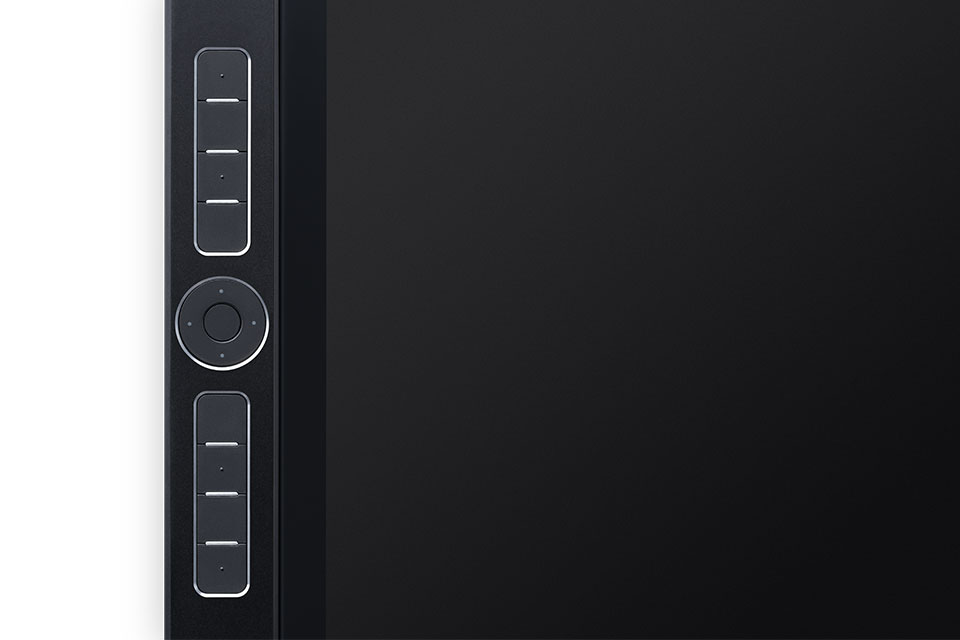

• ExpressKeys™ : 8 customizable, application-specific
• Touch Ring : Yes on Rocker Ring
• Touch Strips : No
• On-Screen Controls : Yes
• Rocker Ring And Home Button : 4 position customizable with default TouchRing function and home button
• Radial Menu : Yes
• Precision Mode : Yes
• Display Toggle : Yes when attached to Mac or PC using optional Wacom Link
• Dedicated Pan, Scroll, Zoom, Brush Size : Yes
• Stand Adjustability : optional detachable Wacom stand with 3 angles (22, 35 & 50 degree)
• Orientation : Right or left-handed use
• Cable Included : AC adaptor and power cable
• Display : N/A
• PC And Mac : Optional Wacom Link with USB-C, Mini DisplayPort and USB cables. Optimum performance using certified USB-C cable to USB-C port.
• Video Out : USB-C

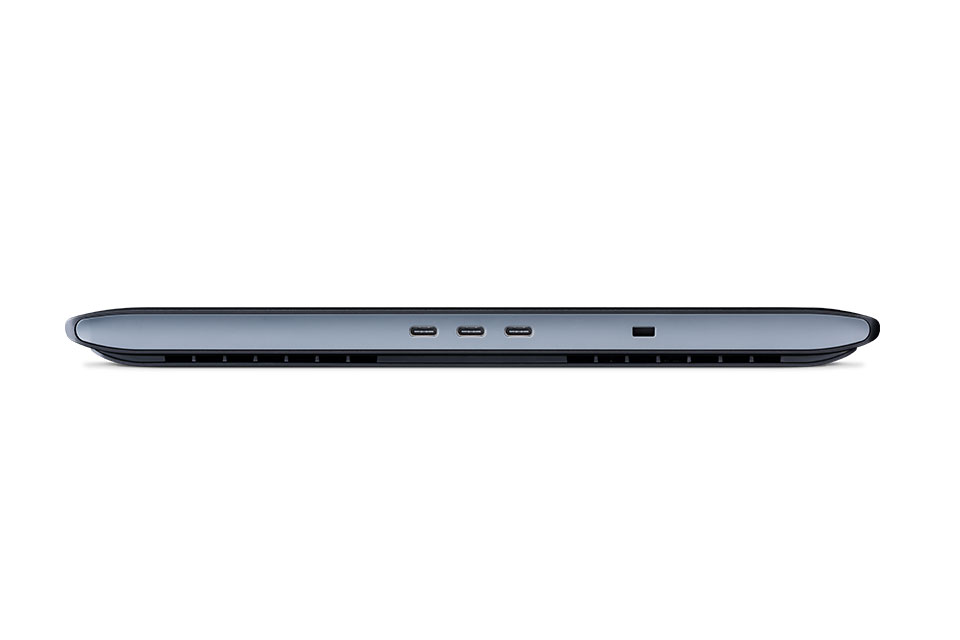

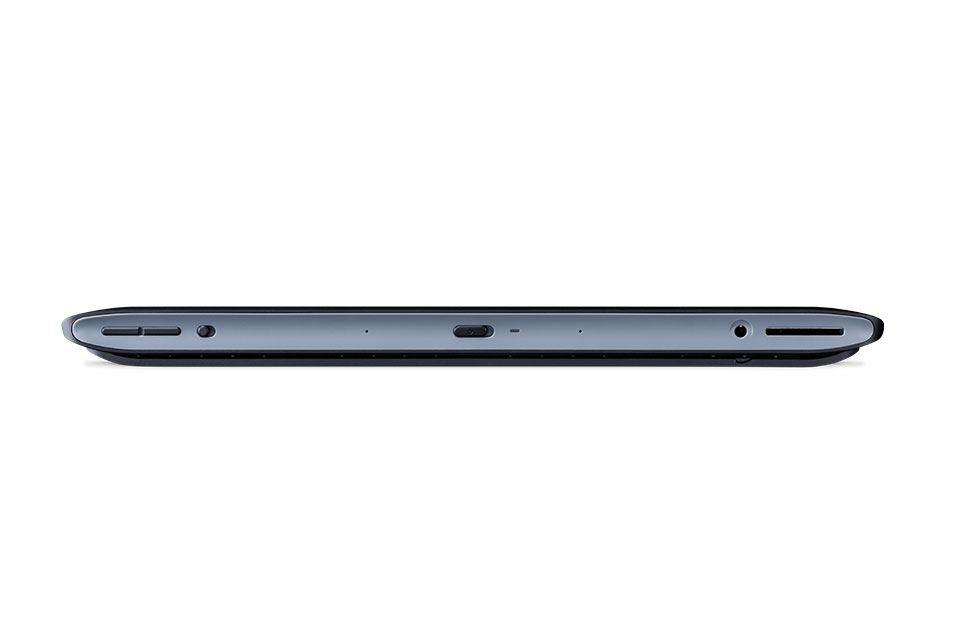

• Peripherals : 3 USB-C ports
• Other Connections : 1 Headset (Audio/combo)
• Network : Bluetooth® 4.1 technology
• Wireless : 802.11 ac
• Sensors : GPS, electronic compass, accelerometer, ambient light, gyro

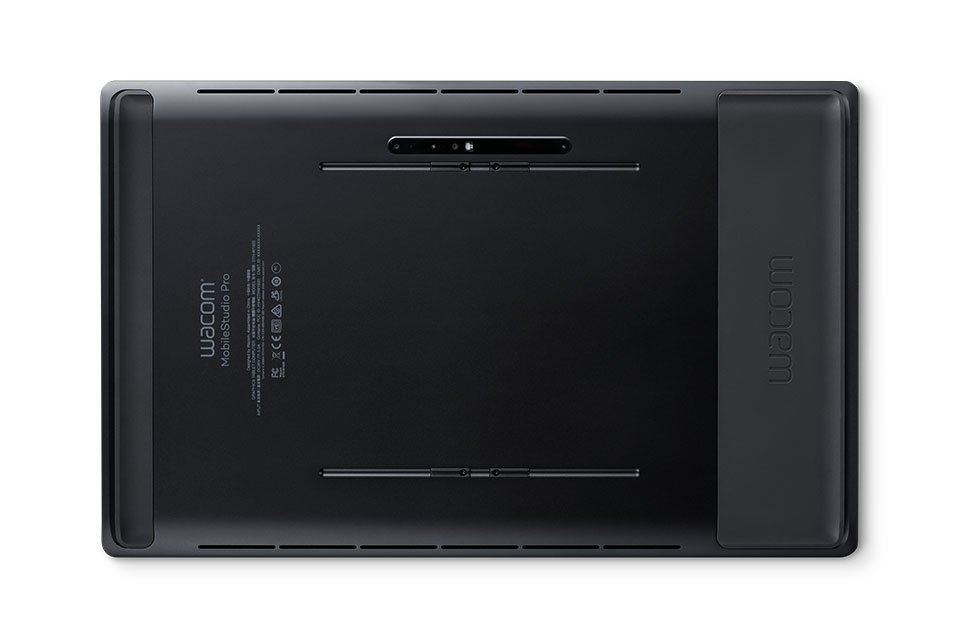

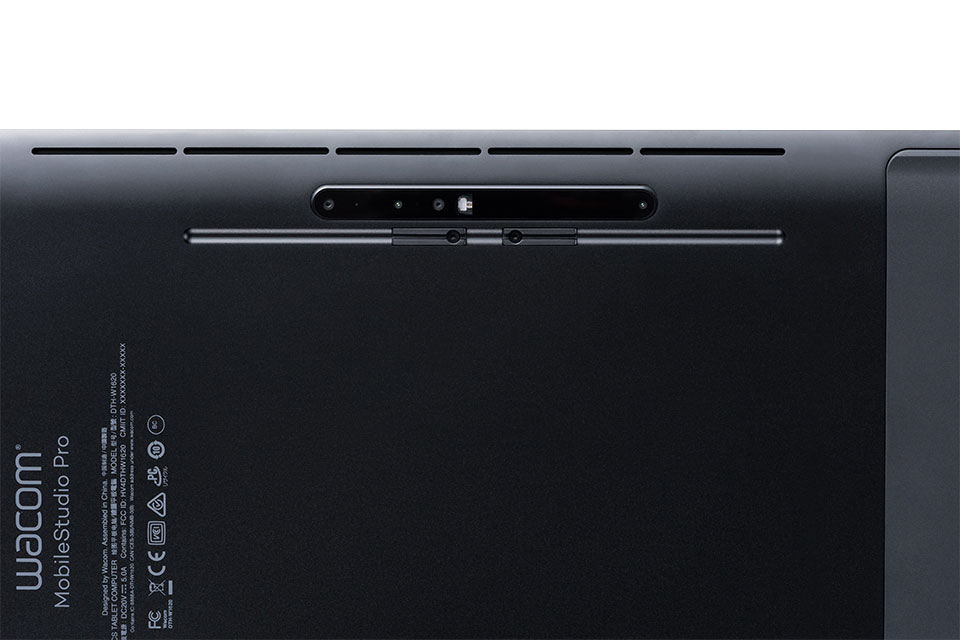

• Cameras : Front: 5 MP HD , Back: 8 MP HD
Back: Intel® RealSense™ R200 (3D scanning camera) on select models with Artec 3D™ one-year software
• Power Supply Input : 100 to 240 VAC, 50/60 Hz
• Power Supply Output : 5V/3A (15W), 20V/5A (100W)
• Battery : 7.6 V, Li-polymer, 70 Wh
• Power Consumption : 16inch: Maximum power consumption: 98W, 0.9 W when asleep, 0.6 W or less when off
• Battery Life : up to 6 hours*
Note: Battery Life Will Vary. It Depends On How The Products Are Used And Which Device Settings Are Selected.
• Charging Time : up to 2 hours
• System Requirements : With optional Wacom Link:
Windows® 7 or later
Mac OS X 10.10 or later, USB-C port (or Mini DisplayPort and USB port)
• Limited Warranty : 1 year
• What's Included : Wacom MobileStudio Pro 16
Wacom Pro Pen 2
pen case with 3 replacement nibs, color rings and nib removal tool pen holder
AC Power Adapter + power cable
Quick Start Guide
Cleaning cloth
Regulation Sheet
การรับประกัน : รับประกัน 1 ปี
